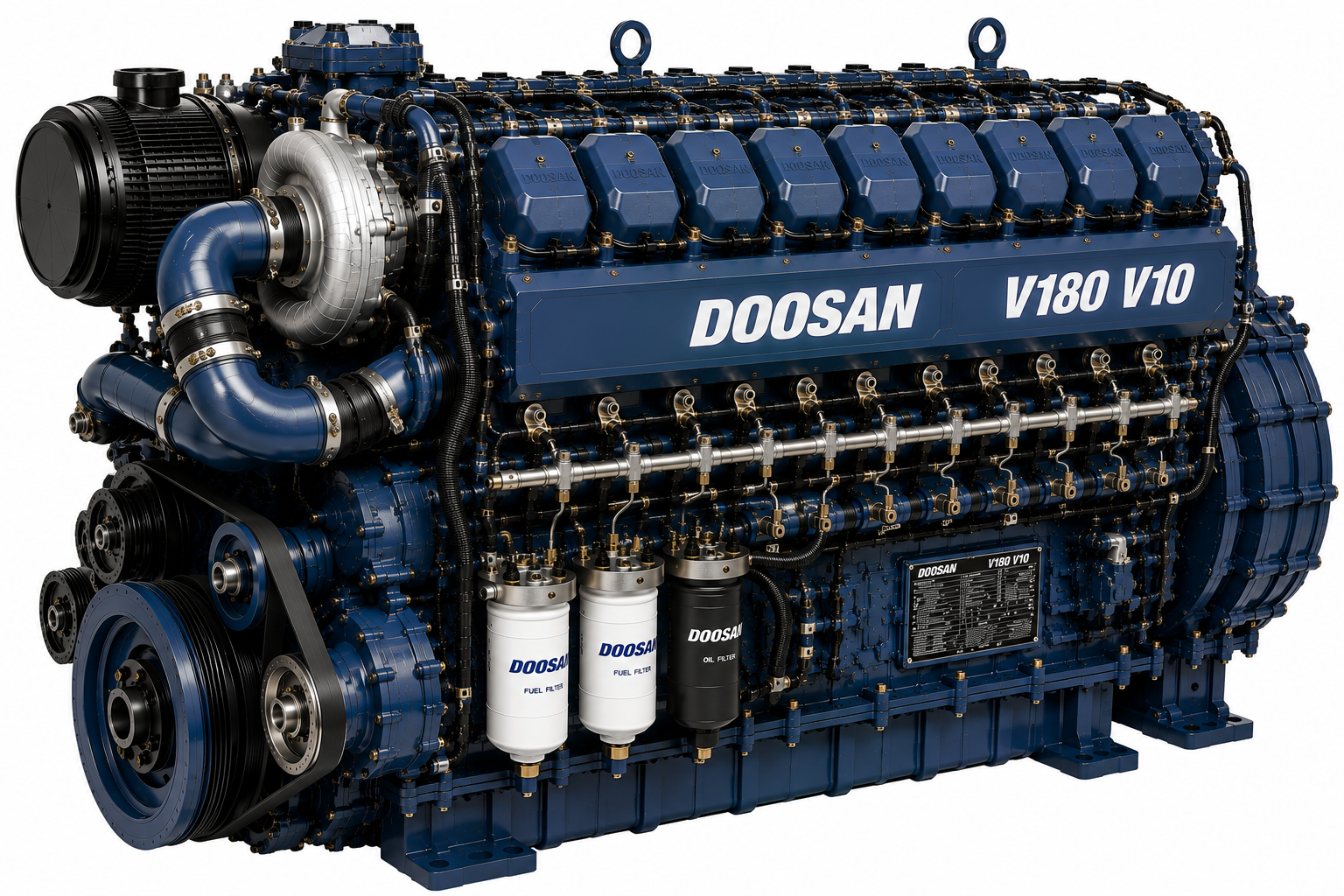

The Doosan V180 V10 marine engine is a heavy-duty V-type diesel engine developed for demanding marine propulsion applications. It belongs to the larger Doosan marine diesel engine range and is commonly associated with the V180TI family.
With its 10-cylinder V configuration, turbocharging and intercooling, the V180 was designed to provide substantial propulsion power while maintaining the durability required for commercial marine operation.
These engines can be found in applications such as:
- Commercial Fishing Vessels
- Trawlers
- Tugboats
- Workboats
- Cargo Vessels
- Ferries
- Passenger Vessels
- Utility Craft
- Commercial Marine Repower Projects
For an engine that has already accumulated many operating hours, spare-parts identification becomes particularly important.
A V180 may have undergone several repairs or overhauls during its working life. Components such as the turbocharger, fuel-injection equipment, seawater pump, starter or alternator may no longer be the exact unit originally installed.
For that reason, when requesting Doosan V180 marine engine spare parts, it is best to provide:
Engine Model + Engine Serial Number + Rated Power + Rated RPM + Existing Part Number + Clear Photographs
1. What Is the Doosan V180 Marine Engine?
The Doosan V180 is a V10 four-stroke marine diesel engine intended for propulsion applications requiring considerably more output than smaller inline Doosan marine engines.
The V180 family is known in marine applications particularly in V180TI configurations.
Its basic design combines:
- V10 Cylinder Arrangement
- Four-Stroke Diesel Operation
- Direct Fuel Injection
- Turbocharging
- Intercooling
- Water Cooling
- Marine Heat-Exchanger Cooling
- Heavy-Duty Engine Construction
The combination of turbocharging and intercooling allows the engine to produce substantial power from its displacement while remaining suitable for marine installations where engine-room space is important.
2. Doosan V180 V10 Technical Information
General technical characteristics associated with the Doosan V180TI marine engine family include:
Technical InformationDoosan V180 V10Engine FamilyV180Common Marine DesignationV180TIEngine TypeMarine Diesel EngineCylinder ArrangementV-TypeNumber of Cylinders10Operating Cycle4-StrokeDisplacementApprox. 18.3 LitersBoreApprox. 128 mmStrokeApprox. 142 mmFuel InjectionDirect InjectionFuel ControlMechanicalAspirationTurbochargedCharge-Air CoolingIntercooledCoolingWater CooledTypical Rated SpeedApprox. 1,800–2,300 rpmApproximate Power Range441–603 kWApproximate Output600–820 PSTypical ApplicationMarine Propulsion
Exact specifications can vary according to the V180 version, duty rating and vessel installation.
Always use the engine identification plate and serial number when confirming technical specifications or replacement components.
3. What Versions of the Doosan V180 Are Used in Marine Applications?
The V180TI family can be encountered in different duty and power configurations.
These can include designations such as:
- Doosan V180TI
- Doosan V180TIH
- Doosan V180TIM
- Doosan V180TIL
The letters following the basic V180TI designation can relate to the particular engine rating or application configuration.
This matters when ordering parts.
Two engines may both be described simply as:
Doosan V180
but have different:
- Rated Power
- Rated RPM
- Turbocharger Specification
- Fuel-System Configuration
- Cooling-System Arrangement
- Exhaust Arrangement
- Marine Installation Components
Never assume that every configuration-sensitive V180 component is interchangeable.
4. What Does the V10 Configuration Mean?
The Doosan V180 uses ten cylinders arranged in two banks.
Instead of placing all ten cylinders in one long row, the cylinders are arranged in a V configuration.
This provides a relatively compact engine layout for the amount of displacement and power produced.
From a maintenance perspective, the V10 arrangement affects components including:
- Cylinder Heads
- Cylinder Head Gaskets
- Intake Components
- Exhaust Components
- Valve-Train Components
- Fuel Injection Components
- Cooling Pipes
- Lubrication Components
- Pistons
- Connecting Rods
When dismantling the engine, careful component identification and cylinder-position recording can make the overhaul process considerably easier.
5. What Does TI Mean on the Doosan V180TI?
The V180TI uses turbocharging and intercooling.
The basic airflow can be understood as:
Air Filter → Turbocharger → Intercooler → Intake System → Cylinders
The turbocharger compresses incoming air.
Compressing the air increases its temperature.
The intercooler removes part of this heat before the air reaches the cylinders.
This arrangement helps provide the engine with a greater mass of air for combustion.
6. Why Is the Turbocharger Important on the V180?
The turbocharger uses energy from the exhaust gases to compress intake air.
Under propulsion load, the engine requires substantially more air and fuel than it does at idle.
A properly functioning turbocharger therefore has an important influence on:
- Engine Power
- Acceleration
- Combustion
- Exhaust Smoke
- Exhaust Temperature
- Fuel Consumption
- Ability to Reach Rated RPM
A turbocharger problem does not always cause an immediate engine shutdown.
Performance can deteriorate gradually.
7. What Are Possible Signs of V180 Turbocharger Problems?
Possible symptoms include:
- Reduced Engine Power
- Slow Acceleration
- Reduced Boost
- Black Exhaust Smoke
- Increased Exhaust Temperature
- Abnormal Turbocharger Noise
- Oil Leakage
- Increased Oil Consumption
- Difficulty Reaching Rated RPM
However, these symptoms do not automatically mean that the turbocharger itself has failed.
8. What Else Can Cause Low Boost on a Doosan V180?
Possible causes include:
- Restricted Air Filter
- Restricted Air Intake
- Charge-Air Leakage
- Loose Hose Clamps
- Damaged Charge-Air Hoses
- Intercooler Fouling
- Exhaust Leakage Before the Turbocharger
- Exhaust Restriction
- Fuel-System Problems
- Excessive Engine Load
A good troubleshooting sequence is:
Air Intake → Turbocharger → Charge-Air System → Intercooler → Exhaust System → Fuel System
9. Why Is the V180 Intercooler Important?
The intercooler reduces the temperature of compressed air leaving the turbocharger.
If intercooler performance deteriorates, the engine can experience:
- Higher Charge-Air Temperature
- Reduced Engine Performance
- Increased Exhaust Temperature
- Increased Smoke
- Poorer Combustion Under Load
The intercooler should therefore be treated as an important engine component rather than simply another cooler.
10. What Can Cause V180 Intercooler Problems?
Possible causes include:
- Air-Side Fouling
- Oil Deposits
- Salt Deposits
- Scale
- Corrosion
- Restricted Cooling-Water Flow
- Charge-Air Leakage
- Damaged Gaskets
- Damaged O-Rings
- Internal Leakage
Both sides matter:
Charge-Air Side + Cooling-Water Side
11. What Fuel System Does the Doosan V180 Use?
The V180TI belongs to an older generation of heavy-duty marine diesel engines using a mechanically controlled direct fuel-injection system rather than the electronic common-rail architecture found on many newer marine engines.
The fuel system can involve components including:
- Fuel Injection Pump
- Fuel Injectors
- Injector Nozzles
- Fuel Filters
- Fuel Feed Components
- High-Pressure Fuel Pipes
- Fuel Return Lines
- Fuel Connections
- Pump Components
- Fuel-System Seals
Correct fuel-system condition is essential for balanced combustion across all ten cylinders.
12. What Are Possible Signs of V180 Injector Problems?
Possible symptoms include:
- Difficult Starting
- Rough Idle
- Uneven Engine Running
- Increased Exhaust Smoke
- Reduced Power
- Higher Fuel Consumption
- Abnormal Combustion Noise
- Cylinder Temperature Differences
- Poor Acceleration
These symptoms should be investigated rather than immediately assuming the injector has failed.
13. Does a Weak Cylinder Automatically Mean a Bad Injector?
No.
A weak cylinder can potentially result from:
- Injector Problems
- Fuel Delivery Problems
- Injection Pump Problems
- Low Compression
- Intake Valve Leakage
- Exhaust Valve Leakage
- Piston Ring Wear
- Cylinder Wear
- Internal Engine Damage
The injector is one possible cause.
14. Should All Ten V180 Injectors Be Replaced Together?
Not automatically.
If one cylinder behaves differently from the others, investigate:
- Injector Condition
- Fuel Delivery
- Injection Pump Operation
- Compression
- Intake Valve Condition
- Exhaust Valve Condition
- Piston Ring Condition
- Cylinder Condition
If testing shows similar deterioration across multiple injectors, servicing or replacement as a set may then be appropriate.
15. Why Is the V180 Injection Pump Important?
The injection pump must deliver fuel correctly to the engine under different operating conditions.
Problems affecting injection equipment can contribute to:
- Difficult Starting
- Uneven Running
- Reduced Power
- Poor Acceleration
- Increased Smoke
- Increased Fuel Consumption
- Difficulty Reaching Rated RPM
Before replacing an injection pump, also inspect the basic fuel supply.
16. Why Can a V180 Run Normally at Idle but Lose Power Under Load?
This is an important marine troubleshooting question.
At idle, the engine requires relatively little:
- Fuel
- Air
- Boost
- Cooling Capacity
Under propulsion load, demand increases substantially.
A restriction that is barely noticeable at idle can become significant under load.
Possible causes include:
- Restricted Fuel Filters
- Poor Fuel Supply
- Air Entering the Fuel System
- Injection Problems
- Restricted Air Intake
- Low Turbocharger Performance
- Charge-Air Leakage
- Intercooler Fouling
- Exhaust Restriction
- Low Compression
- Excessive Propeller Load
- Hull Fouling
- Propeller Fouling
The engine itself should not automatically be blamed until the vessel load is also considered.
17. Doosan V180 Cooling System
Marine diesel engines must remove a considerable amount of heat during sustained propulsion operation.
The V180 cooling arrangement can involve:
- Freshwater Pump
- Raw-Water / Seawater Pump
- Thermostats
- Heat Exchanger
- Intercooler
- Cooling Pipes
- Cooling Hoses
- Cooling-Water Connections
- Gaskets
- O-Rings
- Seals
A problem in one part of the cooling circuit can affect overall engine temperature.
18. Why Can the V180 Overheat Under Load but Not at Idle?
At idle, the engine produces relatively little heat.
Under heavy propulsion load:
More Fuel → More Combustion → More Power → More Heat
The cooling system must remove this additional heat.
A partially restricted cooling system may therefore appear completely normal at the dock but struggle during sustained operation.
Possible causes include:
- Restricted Sea Strainer
- Reduced Seawater Flow
- Seawater Pump Wear
- Freshwater Pump Wear
- Thermostat Problems
- Heat Exchanger Fouling
- Intercooler Cooling Restriction
- Restricted Cooling Passages
- Low Coolant Level
- Excessive Engine Load
19. Why Is the V180 Seawater Pump Important?
The seawater pump supplies cooling water through the marine cooling circuit.
Reduced seawater flow can affect:
- Heat Exchanger Performance
- Intercooler Performance
- Engine Coolant Temperature
- Charge-Air Temperature
- Overall Engine Thermal Load
A seawater pump can deteriorate gradually rather than failing completely.
20. Can a Seawater Pump Be Worn Without Leaking?
Yes.
Internal deterioration can potentially involve:
- Impeller Wear
- Pump Housing Wear
- Shaft Wear
- Bearing Wear
- Internal Corrosion
- Reduced Pumping Efficiency
The absence of an external leak does not prove that the pump is producing sufficient cooling-water flow.
21. Why Should the Existing V180 Seawater Pump Be Identified?
Marine installations can differ.
The currently installed pump may also have been replaced during an earlier repair.
When requesting a replacement, provide:
- Engine Model
- Engine Serial Number
- Existing Pump Part Number
- Pump Manufacturer
- Clear Photographs
- Mounting Arrangement
- Inlet Connection
- Outlet Connection
This reduces the chance of ordering a pump that appears similar but does not match the vessel installation.
22. Doosan V180 Heat Exchanger
The heat exchanger transfers engine heat from the freshwater cooling circuit to the seawater circuit.
Possible problems include:
- Salt Deposits
- Scale
- Sediment
- Marine Growth
- Corrosion
- Restricted Tubes
- Reduced Seawater Flow
- Internal Leakage
- Damaged Gaskets
- Damaged O-Rings
A heat exchanger does not have to be completely blocked before engine temperature starts increasing.
23. Why Is Temperature Trend Important?
Do not only ask:
“Is the engine overheating?”
Also ask:
“Is it running hotter than it did before under the same load?”
A gradual increase can provide an early warning of:
- Heat Exchanger Fouling
- Reduced Seawater Flow
- Freshwater Pump Wear
- Thermostat Problems
- Intercooler Fouling
- Increasing Engine Load
Trend changes can be extremely useful in marine maintenance.
24. Doosan V180 Lubrication System
The lubrication system protects major internal components including:
- Crankshaft
- Main Bearings
- Connecting Rod Bearings
- Camshaft Components
- Valve-Train Components
- Pistons
- Cylinder Components
- Turbocharger Bearings
Potential replacement parts can include:
- Engine Oil Pump
- Oil Pump Components
- Oil Filters
- Oil Cooler Components
- Oil Pressure Components
- Turbocharger Oil Lines
- Gaskets
- O-Rings
- Oil Seals
25. What Can Cause Low Oil Pressure on a V180?
Possible causes include:
- Low Oil Level
- Incorrect Lubricant
- Deteriorated Oil
- Fuel Dilution
- Restricted Oil Filter
- Oil Pump Wear
- Pressure-Regulating Problems
- Main Bearing Wear
- Connecting Rod Bearing Wear
- Crankshaft Wear
- Incorrect Pressure Indication
Actual oil pressure should be confirmed before major engine components are replaced.
26. Why Is Hot Oil Pressure More Useful Than Only Checking Cold Pressure?
Cold lubricating oil is thicker.
Oil pressure may look acceptable immediately after startup.
As the engine reaches normal operating temperature, the oil becomes thinner.
Excessive internal bearing clearances can then become more noticeable.
Compare pressure under similar:
- Engine Temperature
- Engine Speed
- Engine Load
27. What If the V180 Engine Oil Level Starts Increasing?
If nobody is adding oil but the crankcase level increases, investigate contamination.
Possible sources include:
- Fuel Entering the Lubricating Oil
- Coolant Entering the Lubricating Oil
Fuel dilution can reduce oil viscosity.
Coolant contamination can seriously affect bearing protection.
An unexplained increase in oil level should not be ignored.
28. Doosan V180 Cylinder Head Components
Potential requirements can include:
- Cylinder Head Components
- Cylinder Head Gaskets
- Intake Valves
- Exhaust Valves
- Valve Guides
- Valve Seats
- Valve Springs
- Rocker Components
- Valve Cover Gaskets
- Related Hardware
During cylinder head repair, inspect rather than simply replacing the obvious failed component.
29. What Should Be Inspected During V180 Cylinder Head Repair?
Inspect:
- Cracking
- Corrosion
- Flatness
- Sealing Surfaces
- Intake Valves
- Exhaust Valves
- Valve Seats
- Valve Guides
- Injector Seating Areas
- Cooling Passages
- Previous Machining
- Heat Damage
The condition should determine whether components can be:
Reused → Reconditioned → Repaired → Replaced
30. Why Can a New V180 Cylinder Head Gasket Fail Again?
Because the gasket may only be the visible failure.
Possible underlying causes include:
- Engine Overheating
- Cylinder Head Distortion
- Cooling-System Problems
- Damaged Sealing Surfaces
- Incorrect Assembly
A successful repair addresses:
Failed Gasket + Reason the Gasket Failed
31. Doosan V180 Pistons and Cylinder Components
Potential overhaul requirements can include:
- Pistons
- Piston Rings
- Piston Pins
- Cylinder Liners / Cylinder Components
- Connecting Rods
- Related Internal Components
These parts should normally be selected according to inspection and measurement rather than appearance alone.
32. Does Excessive Blow-By Mean the V180 Only Needs New Piston Rings?
No.
Possible causes include:
- Piston Ring Wear
- Cylinder Wear
- Piston Wear
- Ring-Groove Wear
- Internal Engine Damage
Installing new rings into excessively worn cylinder components may not solve the underlying problem.
33. Why Should the Cylinders Be Measured During Overhaul?
Measurements can identify:
- Cylinder Diameter
- Taper
- Out-of-Round Condition
Visual inspection alone cannot provide all the information required for a proper overhaul decision.
A better sequence is:
Clean → Inspect → Measure → Decide → Order
34. Doosan V180 Crankshaft and Bearings
Potential requirements can include:
- Crankshaft
- Main Bearings
- Connecting Rod Bearings
- Thrust Components
- Connecting Rods
- Front Crankshaft Seal
- Rear Crankshaft Seal
35. Why Should V180 Bearing Size Be Confirmed?
An older marine engine may already have been overhauled.
Its crankshaft may previously have been:
- Polished
- Repaired
- Machined
- Replaced
Before selecting bearings, measure:
- Main Journals
- Connecting Rod Journals
- Taper
- Out-of-Round
- Surface Condition
Measure first. Select bearings second.
36. Doosan V180 Starter Motor
Potential requirements can include:
- Complete Starter Motor
- Starter Solenoid
- Starter Components
- Electrical Connections
- Mounting Hardware
Slow cranking should not automatically be blamed on the starter.
Check:
- Battery Condition
- Battery Charge
- Battery Terminals
- Battery Cables
- Engine Grounds
- Starter Connections
- Starter Motor Condition
37. Doosan V180 Alternator
Potential requirements can include:
- Complete Alternator
- Alternator Components
- Drive Components
- Pulleys
- Electrical Connections
- Mounting Hardware
If batteries repeatedly become discharged, test:
- Batteries
- Alternator Output
- Charging Wiring
- Electrical Connections
- Drive Components
- Unwanted Electrical Loads
38. Doosan V180 Gaskets and Seals
Potential requirements can include:
- Complete Engine Gasket Sets
- Partial Gasket Sets
- Cylinder Head Gaskets
- Valve Cover Gaskets
- Intake Gaskets
- Intercooler Gaskets
- Charge-Air Gaskets
- Exhaust Gaskets
- Turbocharger Gaskets
- Freshwater Pump Gaskets
- Seawater Pump Gaskets
- Oil Pump Gaskets
- Fuel-System Seals
- Cooling-System O-Rings
- Front Crankshaft Seal
- Rear Crankshaft Seal
39. What Parts Can Be Required for a Complete Doosan V180 Overhaul?
Depending on inspection results:
- Pistons
- Piston Rings
- Piston Pins
- Cylinder Liners / Cylinder Components
- Main Bearings
- Connecting Rod Bearings
- Thrust Components
- Connecting Rods
- Cylinder Head Components
- Intake Valves
- Exhaust Valves
- Valve Guides
- Valve Seats
- Complete Gasket Set
- Oil Seals
- Fuel Injectors
- Injection Pump Components
- Turbocharger Components
- Intercooler Components
- Freshwater Pump Components
- Oil Pump Components
More extensive repairs may require:
- Crankshaft
- Camshaft Components
- Complete Cylinder Head Components
- Complete Turbocharger
- Complete Intercooler
- Injection Pump
- Freshwater Pump
- Seawater Pump
- Heat Exchanger
- Starter Motor
- Alternator
40. Should a Complete V180 Overhaul Kit Be Ordered Before Dismantling?
Not necessarily.
Known service items can be prepared beforehand.
However, major internal components should ideally be selected after:
Disassembly → Cleaning → Inspection → Measurement
Determine the condition of:
- Cylinders
- Pistons
- Crankshaft
- Bearings
- Cylinder Heads
- Valves
- Turbocharger
- Intercooler
- Fuel Injection Equipment
- Oil Pump
- Cooling-System Components
Then prepare the final parts requirement.
41. How Should Doosan V180 Spare Parts Be Identified?
For accurate identification, provide:
- Engine Model: Doosan V180 / V180TI
- Full Engine Version Where Available
- Engine Serial Number
- Rated Power
- Rated RPM
- Existing Part Number
- Component Manufacturer Number
- Casting Number Where Available
- Clear Photographs
- Quantity Required
For major external components, also provide identification directly from the existing:
- Fuel Injection Pump
- Fuel Injector
- Turbocharger
- Intercooler
- Freshwater Pump
- Seawater Pump
- Heat Exchanger
- Starter Motor
- Alternator
42. Doosan V180 Spare Parts for Commercial Marine Applications
Alfa Marine Spare Parts supports Doosan V180 V10 marine engine spare parts requirements for:
- Shipyards
- Ship Repairers
- Marine Engineers
- Chief Engineers
- Technical Superintendents
- Fleet Operators
- Marine Service Companies
- Commercial Fishing Companies
- Fishing Vessel Operators
- Tugboat Operators
- Workboat Operators
- Offshore Operators
- Government Fleets
- Maritime Contractors
- Boat Builders
- Marine Equipment Distributors
- Commercial Vessel Operators
Parts requirements can range from routine filters and gaskets to fuel-injection components, turbochargers, cooling components and complete engine overhaul parts.
43. Worldwide Doosan V180 Marine Parts Support
Alfa Marine Spare Parts supports Doosan marine engine parts requirements for customers and vessels operating across major maritime regions, including:
- Spain
- Netherlands
- Belgium
- Germany
- France
- Italy
- Monaco
- Greece
- United Kingdom
- Dubai / UAE
- Nigeria
- Miami / Florida
- Texas
- Toronto / Canada
- Caribbean
- Central America
- South America
- Other Major International Ports
44. Why Choose Alfa Marine Spare Parts for Doosan V180 Parts?
A V180 parts request is not only about finding a component that looks similar.
The objective is to identify the correct component for the actual engine configuration.
Alfa Marine Spare Parts supports requirements for:
- Routine Maintenance
- Fuel-System Repair
- Injector Replacement
- Injection Pump Repair
- Turbocharger Repair
- Intercooler Repair
- Cooling-System Repair
- Cylinder Head Repair
- Internal Engine Repair
- Crankshaft and Bearing Repair
- Complete Engine Overhaul
Depending on the component and availability, supply options can include:
- Genuine Parts
- OEM-Quality Components
- Selected Aftermarket Parts
- Rebuilt or Remanufactured Components
45. What Information Should I Send With a V180 Parts Request?
For faster identification, send:
Engine: Doosan V180 / V180TI
Engine Version: If Known
Engine Serial Number:
Rated Power:
Rated RPM:
Required Part:
Existing Part Number:
Quantity Required:
Vessel Type:
Delivery Country / Port:
Clear photographs of the engine identification plate and existing component are particularly useful.
The simplest rule for an older V180 is:
Never order only by appearance when an engine serial number or component number is available.
