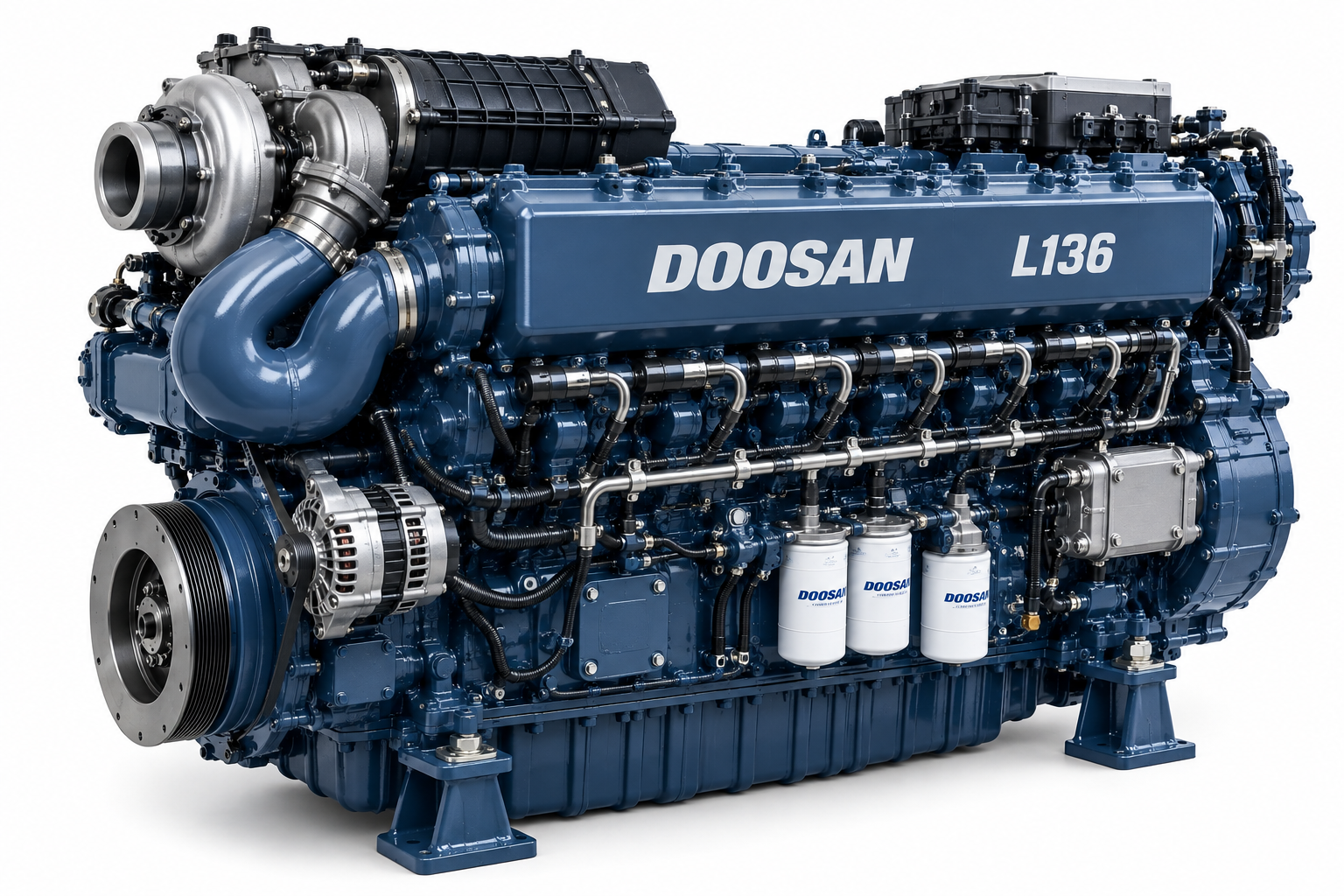

The Doosan L136 marine engine is a six-cylinder diesel engine used in commercial marine propulsion and other demanding vessel applications. Its relatively straightforward mechanical design has made this engine family familiar to shipyards, marine engineers, fishing-vessel operators and repair workshops.
As L136 engines become older, the question is often no longer simply:
“Where can I find Doosan L136 parts?”
The more important question is:
“How do I make sure the replacement part actually matches my engine?”
An L136 may have been repaired several times during its working life. Fuel equipment, cooling components, pumps, starter motors, alternators and even major internal components may already have been replaced.
For this reason, Alfa Marine Spare Parts recommends identifying components using:
Engine Model + Engine Serial Number + Existing Part Number + Clear Photographs
Alfa Marine Spare Parts supports Doosan L136 Marine Engine Spare Parts requirements for routine maintenance, engine repair and complete overhaul.
1. What Is the Doosan L136 Marine Engine?
The Doosan L136 is an inline six-cylinder, four-stroke diesel engine from the larger Doosan L-series engine family.
The standard L136 is a naturally aspirated engine.
This distinction is important because closely related engine versions can include:
- Doosan L136

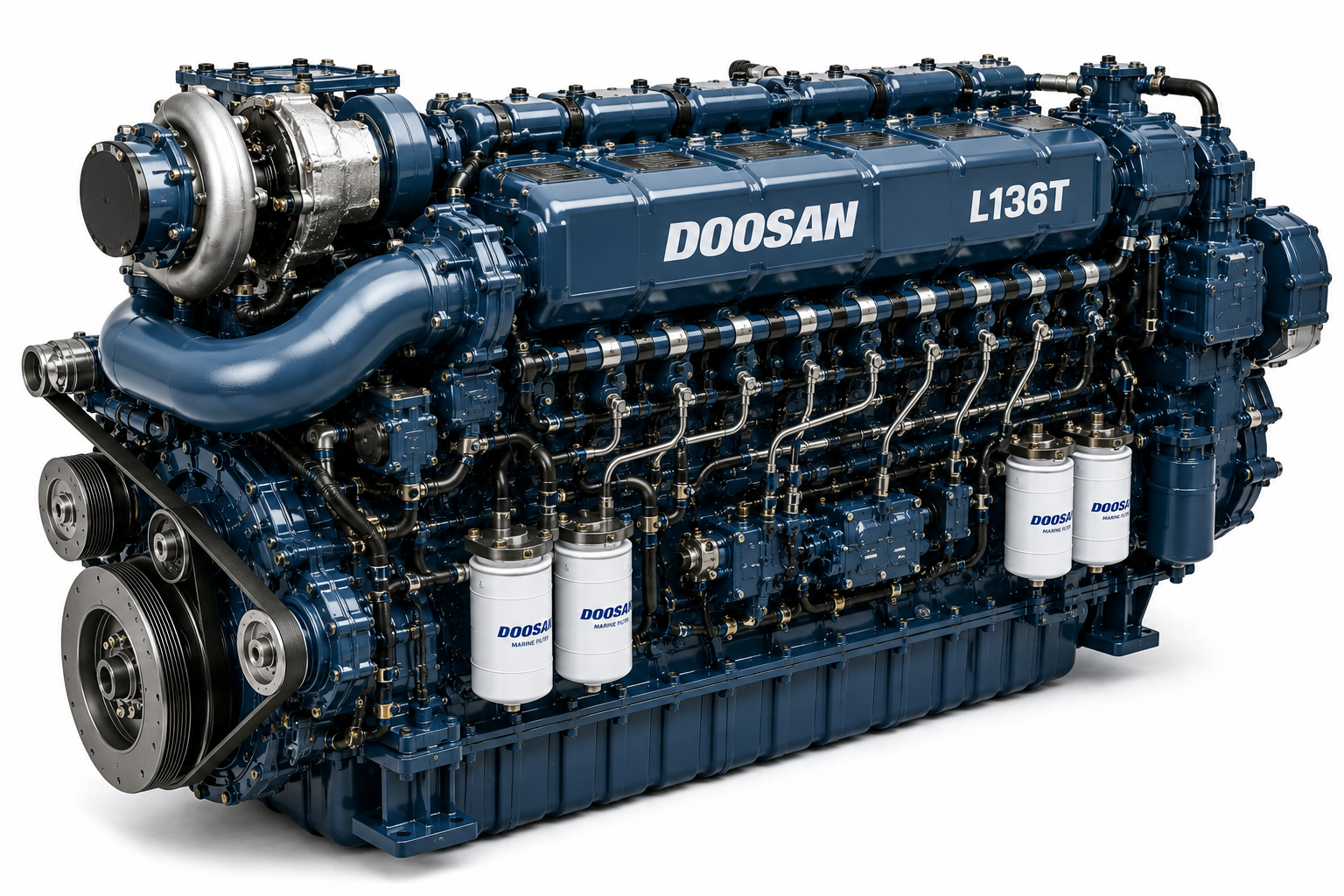

- Doosan L136T
- Doosan L136TI
The letters following the engine designation matter.
An L136 should therefore not automatically be treated as an L136T or L136TI when identifying replacement parts.
Always work from the complete engine identification.
2. Doosan L136 Technical Information
Typical technical characteristics of the Doosan L136 include:
Technical InformationDoosan L136Engine ModelL136Engine ConfigurationInline 6-CylinderOperating CycleFour-Stroke DieselDisplacementApprox. 8.1 LitersBoreApprox. 111 mmStrokeApprox. 139 mmAspirationNaturally AspiratedFuel SystemDirect InjectionEngine ControlMechanicalCoolingWater CooledRated SpeedUp to approximately 2,200 rpm depending on applicationTypical ApplicationMarine Propulsion / Commercial Marine
Exact output, equipment arrangement and installation specifications can vary.
For parts ordering, the actual engine identification and serial number should always take priority over general specification tables.
3. Is the Doosan L136 Turbocharged?
The standard Doosan L136 is naturally aspirated.
This is one of the important differences between the L136 and related engines within the same family.
In simple terms:
L136 → Naturally Aspirated
L136T → Turbocharged
L136TI → Turbocharged / Intercooled Configuration
This matters when customers search for parts.
For example, a turbocharger, turbocharger gasket or charge-air component listed for an L136T or L136TI should not automatically be considered suitable for a standard L136.
4. Where Is the Doosan L136 Used?
The L136 can be found in marine applications such as:
- Fishing Vessels
- Commercial Fishing Boats
- Passenger Boats
- Workboats
- Utility Vessels
- Small Commercial Craft
- Marine Propulsion Installations
Older engines may also continue operating after many years of repair and overhaul.
That makes parts identification increasingly important.
5. What Doosan L136 Spare Parts Are Commonly Required?
Depending on the engine configuration and repair requirement, parts can include:
Fuel System
- Fuel Injectors
- Injector Nozzles
- Injection Pump Components
- Fuel Filters
- Fuel Pipes
- Fuel Connections
- Fuel-System Seals
- Gaskets
- O-Rings
Cooling System
- Freshwater Pumps
- Raw-Water Pumps
- Pump Impellers
- Thermostats
- Heat Exchangers
- Cooling Pipes
- Cooling Hoses
- Pump Seals
- Cooling-System Gaskets
- O-Rings
Lubrication System
- Oil Pumps
- Oil Filters
- Oil Pressure Components
- Oil Seals
- Gaskets
- Crankshaft Seals
Cylinder Head & Valve Train
- Complete Cylinder Heads
- Cylinder Head Gaskets
- Intake Valves
- Exhaust Valves
- Valve Guides
- Valve Seats
- Valve Springs
- Rocker Components
- Valve Cover Gaskets
Internal Engine Components
- Pistons
- Piston Rings
- Piston Pins
- Cylinder Components
- Connecting Rods
- Main Bearings
- Connecting Rod Bearings
- Thrust Components
- Crankshaft Components
- Camshaft Components
Electrical Components
- Starter Motors
- Starter Solenoids
- Alternators
- Charging Components
- Electrical Connections
Overhaul Components
- Complete Gasket Sets
- Partial Gasket Sets
- Pistons
- Rings
- Bearings
- Seals
- Cylinder Head Components
- Fuel-System Components
- Cooling-System Components
6. Why Is Correct L136 Parts Identification Important?
Imagine a vessel engineer sends an inquiry saying:
“Need water pump for Doosan L136.”
That sounds straightforward.
But which water pump?
The requirement could be for:
Engine freshwater circulation pump
or
Marine raw-water/seawater pump.
Those are completely different components.
The same issue can occur with:
- Starter Motors
- Alternators
- Injection Pumps
- Fuel Injectors
- Heat Exchangers
- Cooling Components
- Gasket Sets
- Internal Engine Components
For this reason, the engine model alone may not always be enough.
7. What Information Should I Send for Doosan L136 Parts?
For accurate identification, send:
- Complete Engine Model
- Engine Serial Number
- Photograph of Engine Identification Plate
- Existing Part Number
- Component Manufacturer Number
- Casting Number Where Available
- Clear Component Photographs
- Quantity Required
- Vessel Application
- Delivery Country or Port
For a pump, starter, alternator or other external component, photograph the complete component and its identification plate.
8. What If the L136 Part Number Is Unreadable?
This happens frequently with older marine engines.
Identification plates and numbers can become:
- Corroded
- Painted Over
- Scratched
- Oil Covered
- Heat Damaged
- Partially Missing
- Difficult to Read
Do not immediately discard the old component.
Photograph:
- Complete Component
- Front
- Rear
- Side
- Mounting Points
- Hose Connections
- Electrical Connections
- Fuel Connections
- Casting Numbers
- Remaining Identification Marks
Sometimes one unreadable number is not enough.
But several physical details together can help identify the correct replacement.
9. Doosan L136 Fuel Injectors
The injectors have a direct influence on combustion quality.
Potential requirements can include:
- Complete Fuel Injectors
- Injector Nozzles
- Injector Seals
- Injector Hardware
- Related Fuel Components
Possible injector-related symptoms include:
- Difficult Starting
- Rough Running
- Increased Smoke
- Uneven Cylinder Operation
- Reduced Power
- Higher Fuel Consumption
- Abnormal Combustion Noise
But do not automatically conclude:
“Smoke = bad injector.”
Other engine problems can create similar symptoms.
10. One L136 Cylinder Is Weak — Is the Injector Bad?
Possibly.
But this should be diagnosed rather than assumed.
Check:
- Injector Condition
- Fuel Delivery
- Injection Pump Operation
- Compression
- Intake Valve Condition
- Exhaust Valve Condition
- Piston Rings
- Cylinder Condition
One weak cylinder on a six-cylinder engine can affect:
- Engine Smoothness
- Vibration
- Power
- Exhaust Temperature
- Smoke
- Fuel Consumption
Replacing an injector will not repair a cylinder with poor mechanical compression.
11. Doosan L136 Injection Pump Parts
Depending on configuration and availability, requirements can include:
- Injection Pump Components
- Pump Seals
- Fuel Supply Components
- Fuel Pipes
- Fuel Connections
- Gaskets
- O-Rings
Because the L136 uses mechanical fuel control, the condition of the injection system has a major influence on engine performance.
When requesting injection equipment, send any identification numbers visible on the existing equipment.
12. Why Does My Doosan L136 Lose Power Under Load?
This is an important diagnostic question.
An engine may start normally.
It may idle smoothly.
It may even sound healthy at low speed.
Then the vessel gets underway and the engine cannot develop normal power.
Possible causes include:
- Restricted Fuel Filter
- Restricted Fuel Supply
- Air Entering the Fuel System
- Injection Pump Problems
- Injector Problems
- Restricted Air Intake
- Exhaust Restriction
- Low Compression
- Excessive Propeller Load
- Excessive Vessel Load
Because the standard L136 is naturally aspirated, diagnosis should not incorrectly focus on turbocharger boost.
13. Why Can a Restricted Fuel Filter Cause Power Loss?
At idle, fuel demand is relatively low.
A partially restricted filter may still allow enough fuel through for the engine to run normally.
Under load, fuel demand increases.
The restriction now becomes much more important.
The engine may:
- Lose RPM
- Respond Slowly
- Produce Smoke
- Struggle Under Load
- Fail to Reach Expected Speed
This is why basic fuel-supply checks should be performed before expensive fuel-system components are replaced.
14. Doosan L136 Air-Intake System
The naturally aspirated L136 depends on an unrestricted air supply.
Potential requirements can include:
- Air Filter Elements
- Air Cleaner Components
- Intake Hoses
- Intake Pipes
- Intake Connections
- Clamps
- Intake Gaskets
A restriction in the air path can affect combustion.
15. Why Is My Doosan L136 Producing Black Smoke?
Possible causes include:
- Restricted Air Filter
- Restricted Intake
- Injector Problems
- Injection Pump Problems
- Poor Combustion
- Low Compression
- Excessive Fuel Delivery
- Excessive Propeller Load
- Excessive Vessel Load
Black smoke tells you that combustion conditions need investigation.
It does not automatically identify which component is responsible.
16. Why Is My Doosan L136 Producing White Smoke?
Possible causes can include:
- Cold Engine Operation
- Poor Fuel Atomization
- Injector Problems
- Fuel-System Problems
- Low Compression
- Valve-Sealing Problems
- Cylinder Condition
The timing of the smoke matters.
White smoke appearing briefly during a cold start is different from continuous white smoke after the engine has reached operating temperature.
17. Doosan L136 Cooling-System Parts
Marine diesel reliability depends heavily on cooling-system condition.
Potential L136 requirements can include:
- Freshwater Pumps
- Raw-Water Pumps
- Thermostats
- Heat Exchangers
- Cooling Pipes
- Cooling Hoses
- Raw-Water Pump Impellers
- Pump Seals
- Gaskets
- O-Rings
A cooling problem should be investigated early.
Repeated overheating can eventually affect the cylinder head, head gasket, pistons and lubrication system.
18. Why Is My Doosan L136 Overheating?
Possible causes include:
- Low Coolant Level
- Coolant Leakage
- Thermostat Problems
- Freshwater Pump Wear
- Restricted Cooling Passages
- Heat Exchanger Fouling
- Reduced Raw-Water Flow
- Restricted Sea Strainer
- Damaged Seawater Pump Impeller
- Restricted Cooling Hoses
- Excessive Engine Load
Do not automatically replace the thermostat or water pump.
Look at the complete cooling circuit.
19. Why Does the L136 Run Hot Only Under Load?
This is a common marine-engine situation.
At idle, the engine produces relatively little heat.
The cooling system may appear completely normal.
Once the vessel is operating under load, much more heat needs to be removed.
A partially restricted cooling system may then become inadequate.
Inspect:
Sea Intake → Sea Strainer → Raw-Water Pump → Heat Exchanger → Freshwater Circuit → Exhaust Cooling
The problem may be a restriction rather than a completely failed component.
20. Doosan L136 Freshwater Pump Parts
Potential requirements can include:
- Complete Freshwater Pumps
- Pump Housings
- Pump Shafts
- Bearings
- Mechanical Seals
- Impellers
- Gaskets
- O-Rings
A freshwater pump does not necessarily need to leak before it develops a problem.
Internal wear can reduce coolant circulation.
21. Doosan L136 Raw-Water Pump Parts
Marine installations can require:
- Complete Raw-Water Pumps
- Impellers
- Pump Covers
- Pump Shafts
- Bearings
- Mechanical Seals
- Gaskets
- O-Rings
The exact pump should be identified from the individual installation.
Do not assume every L136 uses exactly the same raw-water pump.
Previous vessel modifications and repairs can also change what is currently installed.
22. Doosan L136 Heat Exchanger Parts
Potential requirements can include:
- Complete Heat Exchangers
- Heat Exchanger Cores
- End Covers
- Housing Components
- Cooling Connections
- Gaskets
- O-Rings
- Seals
Marine heat exchangers can gradually lose efficiency because of:
- Salt Deposits
- Scale
- Sediment
- Marine Growth
- Corrosion
- Foreign Material
- Reduced Raw-Water Flow
The exchanger does not need to become completely blocked before engine temperature begins increasing.
23. Doosan L136 Lubrication-System Parts
Potential requirements can include:
- Engine Oil Pumps
- Oil Pump Components
- Oil Filters
- Oil Pressure Components
- Oil Seals
- Gaskets
- O-Rings
- Front Crankshaft Seals
- Rear Crankshaft Seals
Oil pressure should be monitored as an operating trend rather than considered only when an alarm occurs.
24. What Can Cause Low Oil Pressure on a Doosan L136?
Possible causes include:
- Low Oil Level
- Incorrect Oil
- Deteriorated Oil
- Fuel Dilution
- Restricted Oil Filter
- Oil Pump Wear
- Pressure-Regulating Problems
- Main Bearing Wear
- Connecting Rod Bearing Wear
- Crankshaft Wear
- Faulty Pressure Indication
Do not immediately order an oil pump.
Confirm actual oil pressure and investigate the complete lubrication system.
25. Why Can L136 Oil Pressure Become Lower When Hot?
Oil becomes less viscous as its temperature rises.
On an engine with increased internal clearances, this can make lower hot oil pressure more noticeable.
Compare pressure under similar:
- Engine Speed
- Engine Temperature
- Engine Load
A change from the engine's normal historical behavior deserves investigation.
26. Doosan L136 Cylinder Head Parts
Potential requirements can include:
- Complete Cylinder Heads
- Cylinder Head Gaskets
- Intake Valves
- Exhaust Valves
- Valve Guides
- Valve Seats
- Valve Springs
- Rocker Components
- Valve Cover Gaskets
- Related Hardware
When a cylinder head is removed, do not inspect only the failed gasket.
Inspect the complete head condition.
27. What Should Be Checked During L136 Cylinder Head Repair?
Check:
- Cracking
- Corrosion
- Flatness
- Sealing Surfaces
- Intake Valves
- Exhaust Valves
- Valve Seats
- Valve Guides
- Injector Seating Areas
- Cooling Passages
- Previous Machining
- Heat Damage
The inspection should determine whether the head should be:
Reused → Reconditioned → Repaired → Replaced
28. Why Can a New L136 Head Gasket Fail Again?
Because the gasket may be the damaged component without being the original cause.
For example:
Restricted heat exchanger → engine overheating → cylinder head distortion → head gasket failure
If only the head gasket is replaced, the original cooling problem remains.
A proper repair should address:
Failure + Root Cause
29. Doosan L136 Piston and Internal Engine Parts
Potential requirements can include:
- Pistons
- Piston Rings
- Piston Pins
- Cylinder Components
- Connecting Rods
- Main Bearings
- Connecting Rod Bearings
- Thrust Components
- Crankshaft
- Camshaft Components
- Gaskets
- Oil Seals
30. What Can Cause Excessive Blow-By on an L136?
Possible causes include:
- Piston Ring Wear
- Cylinder Wear
- Piston Wear
- Ring-Groove Wear
- Internal Engine Damage
Do not automatically conclude that the engine only needs new piston rings.
If the cylinders are already excessively worn, installing new rings alone may not restore correct sealing.
31. Why Should L136 Cylinders Be Measured During Overhaul?
Visual inspection can reveal:
- Scoring
- Surface Damage
- Heavy Wear
Measurement can reveal:
- Diameter
- Taper
- Out-of-Round Condition
This information helps determine whether components can be reused or require repair or replacement.
32. Doosan L136 Crankshaft and Bearing Parts
Potential requirements can include:
- Crankshafts
- Main Bearings
- Connecting Rod Bearings
- Thrust Components
- Connecting Rods
- Front Crankshaft Seals
- Rear Crankshaft Seals
An older L136 may already have undergone crankshaft work during a previous overhaul.
33. Why Should L136 Bearing Size Be Confirmed Before Ordering?
The crankshaft may previously have been:
- Polished
- Repaired
- Machined
- Replaced
Before selecting bearings, inspect and measure:
- Main Journal Diameter
- Connecting Rod Journal Diameter
- Journal Surface
- Taper
- Out-of-Round
- Evidence of Previous Repair
The practical rule is:
Measure first. Select bearings second.
34. Doosan L136 Starter Motor Parts
Potential requirements can include:
- Complete Starter Motors
- Starter Solenoids
- Starter Components
- Electrical Connections
- Mounting Components
A slow-cranking L136 does not automatically need a new starter.
Check:
- Battery Condition
- Battery Charge
- Battery Terminals
- Battery Cables
- Engine Grounds
- Starter Connections
- Starter Solenoid
- Starter Motor
The complete starting circuit matters.
35. Doosan L136 Alternator Parts
Potential requirements can include:
- Complete Alternators
- Alternator Components
- Drive Components
- Pulleys
- Electrical Connections
- Mounting Components
If the batteries repeatedly become discharged, investigate:
- Battery Condition
- Alternator Output
- Charging Wiring
- Electrical Connections
- Drive Condition
- Unwanted Electrical Loads
Charging the battery may solve the immediate symptom without correcting the underlying problem.
36. Doosan L136 Gaskets and Seals
Potential requirements can include:
- Complete Engine Gasket Sets
- Partial Gasket Sets
- Cylinder Head Gaskets
- Valve Cover Gaskets
- Intake Gaskets
- Exhaust Gaskets
- Freshwater Pump Gaskets
- Raw-Water Pump Gaskets
- Oil Pump Gaskets
- Fuel-System Seals
- Cooling-System O-Rings
- Front Crankshaft Seals
- Rear Crankshaft Seals
For an older engine, confirm the exact configuration before ordering a complete gasket kit.
37. Doosan L136 Overhaul Parts
Depending on inspection findings, an L136 overhaul can require:
- Pistons
- Piston Rings
- Piston Pins
- Cylinder Components
- Main Bearings
- Connecting Rod Bearings
- Connecting Rods
- Cylinder Head Components
- Intake Valves
- Exhaust Valves
- Valve Guides
- Valve Seats
- Crankshaft Seals
- Complete Engine Gasket Set
- Fuel Injectors
- Injection Pump Components
- Freshwater Pump Components
- Oil Pump Components
More extensive repairs may require:
- Crankshaft
- Camshaft Components
- Complete Cylinder Head
- Complete Freshwater Pump
- Raw-Water Pump
- Heat Exchanger Components
- Starter Motor
- Alternator
38. Should I Order an L136 Overhaul Kit Before Opening the Engine?
Some known maintenance parts can be prepared beforehand.
But for major internal components, the final order should ideally follow dismantling and inspection.
After opening the engine, determine:
What condition are the cylinders in?
Can the pistons be reused?
What condition is the crankshaft in?
Which bearings are required?
Can the cylinder head be reconditioned?
Are the connecting rods serviceable?
A better overhaul sequence is:
Identify → Diagnose → Disassemble → Clean → Inspect → Measure → Confirm Parts → Rebuild
39. Genuine Doosan L136 Parts
Depending on availability, genuine components can be supplied for selected Doosan L136 maintenance, repair and overhaul requirements.
40. OEM-Quality Doosan L136 Parts
Depending on the component and availability, OEM-quality options may be available for selected:
- Fuel-System Components
- Pumps
- Filters
- Bearings
- Cooling Components
- Electrical Components
- Internal Engine Parts
41. Aftermarket Doosan L136 Parts
Selected aftermarket alternatives may be available for components such as:
- Filters
- Gaskets
- Seals
- Bearings
- Pistons
- Piston Rings
- Selected Pumps
- Cooling Components
- Maintenance Parts
- Selected Internal Engine Components
Compatibility should always be checked against the exact engine.
42. Remanufactured Doosan L136 Components
Depending on availability, rebuilt or remanufactured options may be available for selected:
- Fuel Injectors
- Injection Components
- Cylinder Heads
- Starter Motors
- Alternators
- Pumps
43. Who Do We Supply?
Alfa Marine Spare Parts supports Doosan L136 spare parts requirements for:
- Shipyards
- Ship Repairers
- Marine Engineers
- Chief Engineers
- Technical Superintendents
- Fleet Operators
- Marine Service Companies
- Commercial Fishing Companies
- Fishing Vessel Operators
- Offshore Operators
- Government Fleets
- Workboat Operators
- Maritime Contractors
- Boat Builders
- Marine Equipment Distributors
44. Worldwide Doosan L136 Marine Parts Supply
Alfa Marine Spare Parts supports Doosan L136 Marine Engine Spare Parts requirements for customers throughout major marine markets and ports.
These include:
- Spain
- Netherlands
- Italy
- Monaco
- France
- Belgium
- Germany
- Greece
- United Kingdom
- Dubai / UAE
- Nigeria
- Miami / Florida
- Texas
- Toronto / Canada
- Caribbean
- Central America
- South America
- Other International Seaports
Whether the requirement is for planned maintenance, a vessel repair or an engine overhaul, accurate engine identification helps us identify the correct components.
45. Why Choose Alfa Marine Spare Parts for Doosan L136 Parts?
Alfa Marine Spare Parts supports Doosan L136 engine spare parts for maintenance, repair and overhaul.
Depending on availability and the particular component, requirements can be supported with:
- Genuine Parts
- OEM-Quality Parts
- Aftermarket Alternatives
- Rebuilt Components
- Remanufactured Components
We support customers ranging from individual marine engineers to shipyards, repair companies, vessel operators and fleet managers.
For accurate identification, send:
Engine Model + Engine Serial Number + Existing Part Number + Clear Photographs
46. What Information Should I Send With My Doosan L136 Inquiry?
For the fastest and most accurate identification, provide:
Engine: Doosan L136
Engine Serial Number:
Part Required:
Existing Part Number:
Quantity:
Vessel/Application:
Delivery Country/Port:
Also attach clear photographs of the engine identification plate and existing component whenever possible.
