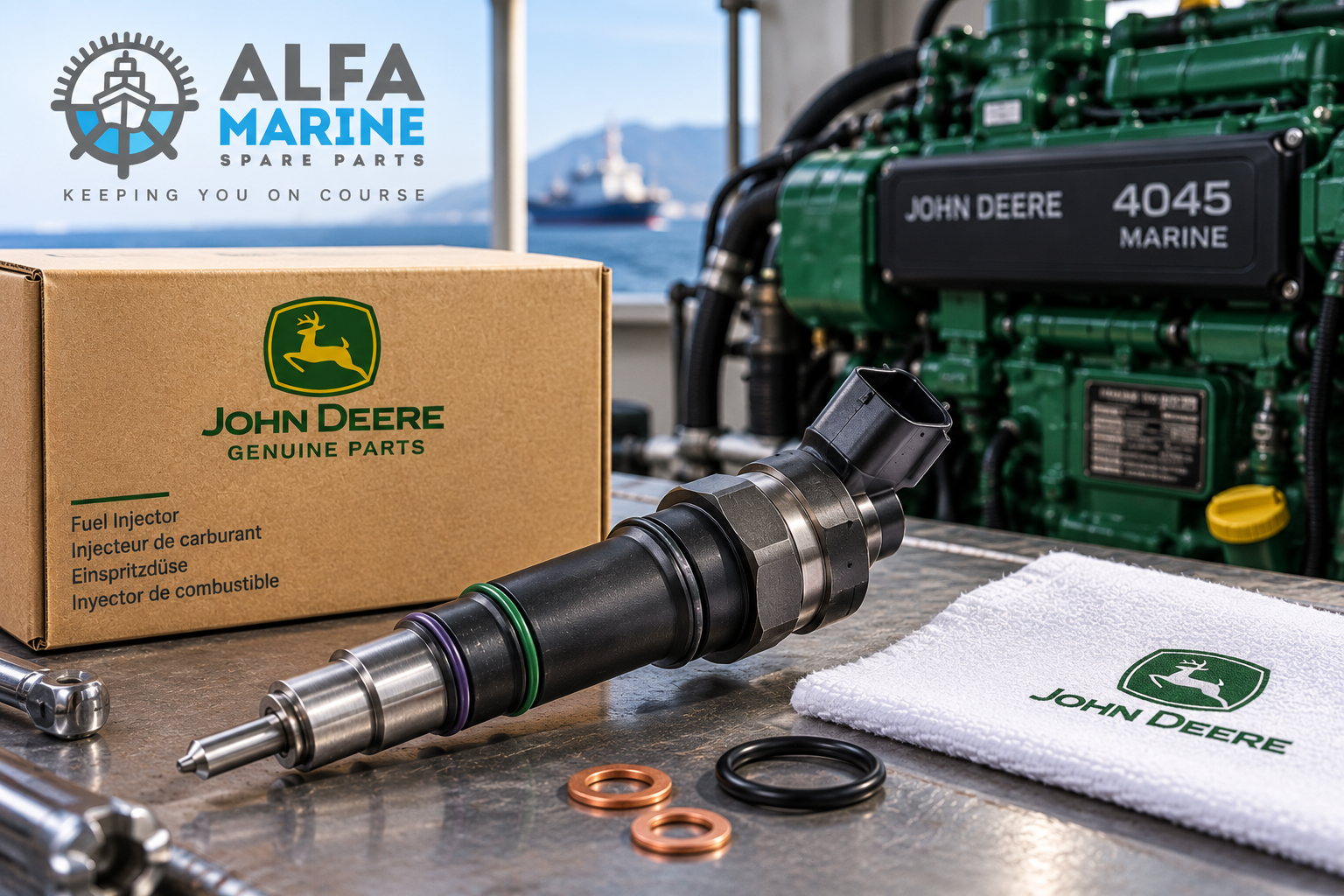

John Deere 4045 Marine Engine Fuel Injector Replacement: What Should You Check First?

Your John Deere 4045 marine engine has started running rough.

Maybe there's more smoke than usual. Perhaps one cylinder doesn't sound quite right, starting has become harder, or you've been told that one of the fuel injectors needs replacing.

So you search:

“John Deere 4045 fuel injector.”

And suddenly there are dozens of injectors, cross-reference numbers and listings claiming to fit a 4045.

Which one do you actually need?

That's where the complete engine model becomes important.

A John Deere 4045 is an engine family. Depending on the vessel and application, you may have a 4045AFM85, 4045SFM85, 4045TFM85 or an older 4045 configuration.

And those engines should not automatically be treated as using the same fuel-injection equipment.

For other components, visit our John Deere 4045 Marine Engine Parts page.

Does the John Deere 4045AFM85 Use Common-Rail Fuel Injection?

Yes.

The John Deere 4045AFM85 uses a high-pressure common-rail (HPCR) fuel system.

Instead of each injector working as a completely independent mechanical unit, fuel is supplied under very high pressure through a common rail and injection is electronically controlled.

That gives the engine precise control over:

Injection timing
Injection duration
Start of injection
End of injection
Fuel quantity

It's an effective system, but it also means injector diagnosis isn't something we'd approach by simply replacing whichever injector looks suspicious.

The injector, electrical system, fuel pressure and fuel quality can all be relevant.

What Is the Fuel Injector Part Number for a John Deere 4045AFM85?

One documented reference for the 4045AFM85 high-pressure fuel injector is:

SE501926 — Reman high-pressure fuel injector

A four-cylinder 4045AFM85 installation uses four injectors.

Another documented fuel-system reference is:

RE551317 — High-pressure injector harness

These are useful numbers when you're trying to identify a 4045AFM85 fuel-system requirement.

But we still recommend checking the engine serial number before ordering.

Why?

Because 4045 by itself covers multiple engine generations and configurations.

Is SE501926 the Injector for Every John Deere 4045?

No.

And this is probably the most important part of this article.

Don't take:

SE501926 = John Deere 4045 injector

and assume it applies to every 4045 ever produced.

The reference is documented for the 4045AFM85 application.

Older 4045 engines and different configurations can use different fuel-injection systems and injector references.

So if your engine plate simply says something from the 4045 family, send us the complete model.

Even better, send a photograph of the plate.

My 4045 Is Running Rough. Does That Mean an Injector Has Failed?

Not necessarily.

A faulty injector can certainly cause poor engine operation, but rough running alone doesn't prove that the injector is the problem.

There can be other causes.

For example:

Contaminated fuel
Water in the fuel
Restricted fuel filter
Low fuel supply pressure
High-pressure fuel-system problem
Injector wiring problem
Electrical connector problem
Sensor fault
Compression problem
Air entering the fuel system
ECU-related fault

So if someone says:

“The engine is rough. Let's change all four injectors.”

we'd want a little more diagnosis first.

Replacing expensive fuel-system components without confirming the cause can become an expensive way of discovering that the problem was somewhere else.

What Are Common Signs of a Bad John Deere 4045 Fuel Injector?

Possible symptoms can include:

Rough running

The engine may feel uneven, particularly at certain speeds or loads.

Hard starting

Poor injector operation can affect combustion during starting.

Excessive smoke

Incorrect fuel delivery or poor atomisation can contribute to abnormal exhaust smoke.

Loss of power

A cylinder that isn't receiving the correct fuel quantity can affect overall engine performance.

Uneven cylinder operation

One cylinder may behave differently from the others.

Fuel-system fault codes

On electronically controlled engines, diagnostic information can provide useful clues.

None of these symptoms proves an injector has failed by itself.

Think of them as reasons to investigate rather than automatic confirmation that you need a new injector.

Can Dirty Fuel Damage a John Deere 4045 Injector?

Yes, and this is especially important with a high-pressure common-rail system.

Modern injection equipment operates with extremely fine internal clearances.

Water, dirt and other contamination can cause expensive damage.

That's why we'd look at the condition of the fuel and filtration system when dealing with an injector problem.

If you've just replaced an injector but haven't addressed contaminated fuel, you may simply be putting the new component into the same conditions that damaged the old one.

John Deere also lists fuel-water-separation filtration for applicable 4045 marine engines.

So when you're investigating injector problems, don't forget about the fuel entering the injector.

Should I Replace One Injector or All Four?

This depends on what testing shows.

Imagine one injector has been properly diagnosed as faulty, while the other three test correctly.

You may not automatically need four injectors.

Now imagine the engine has very high hours, injector performance is inconsistent across several cylinders and multiple injectors are outside specification.

That's a different situation.

The decision should come from diagnosis rather than a blanket rule that all injectors must always be changed together.

For a four-cylinder 4045AFM85, there are four injectors in the engine.

If you're requesting a quotation, tell us whether you need:

1 injector

a complete set of 4

so there is no confusion.

What Is RE551317 on the John Deere 4045AFM85?

RE551317 is a documented high-pressure injector harness reference for the 4045AFM85.

That's worth knowing because not every injector-related problem necessarily comes from the injector itself.

The injector needs an electrical connection to the engine-control system.

If there's a wiring or connector problem, replacing the injector alone may not solve the fault.

So when an electronically controlled 4045 has an injector-related fault, the electrical side of the system deserves attention too.

What Is R515044?

R515044 is a John Deere fuel injector inlet connector fitting.

John Deere lists the component for engines including the 4045AFM85 and 4045SFM85, as well as various other John Deere engine applications.

This is another useful reminder that the injector isn't working alone.

The complete fuel-injection system includes the injector, high-pressure fuel supply, connectors, rail, electrical components and associated sealing hardware.

What Is R522417?

R522417 is a John Deere fuel injector clamp used on applicable engines including the 4045AFM85.

The clamp is part of the injector installation.

When you're preparing an injector replacement, don't think only about the injector itself.

Depending on the repair and condition of the existing components, associated hardware and sealing components may also need attention.

Can I Remove a Common-Rail Fuel Line While the Engine Is Running?

No.

This is one area where old diesel-engine habits don't belong on a modern common-rail engine.

You may have seen someone diagnose an older mechanical diesel by loosening injector lines one at a time while the engine runs.

Don't apply that method to the 4045AFM85 HPCR system.

The common-rail fuel system operates at extremely high pressure.

John Deere service information warns against disconnecting high-pressure fuel lines while the engine is operating and requires pressure to be relieved before work is carried out on the injection system.

This isn't just about protecting the engine.

High-pressure diesel fuel can cause serious injury.

Can I Rebuild the 4045AFM85 Injector Myself?

The injector isn't a component we'd recommend casually dismantling on the workbench.

John Deere service information for applicable common-rail systems specifically warns against disassembling and reassembling injector internal components.

These are precision fuel-system components.

If an injector needs testing, repair or replacement, it should be handled using the appropriate equipment and procedures.

Should I Clean Around the Injector Before Removing It?

Absolutely.

This sounds basic, but it matters.

You're opening part of a precision fuel system.

You don't want dirt, rust, paint flakes or engine-room debris falling into the injector bore or fuel-system connections.

Before removing components, clean the surrounding area properly.

Cap or protect open fuel connections as appropriate during the work.

A new injector going into a dirty fuel system isn't a good repair.

Do I Need New Seals When Replacing a John Deere 4045 Injector?

Don't automatically reuse sealing components simply because they still look acceptable.

Injector installation can involve seals, washers, connector components and other installation hardware depending on the exact engine and injector arrangement.

The correct replacement procedure and parts should be determined from the engine model and serial number.

If you're ordering an injector from us, it's worth asking:

“What seals or installation parts do I need with this injector?”

That's much better than discovering halfway through the job that a required sealing component wasn't ordered.

Can I Install an Injector From Another John Deere 4045 Engine?

Don't assume you can.

Two engines can both have 4045 in their model designation while using different fuel-system generations.

For example, the modern 4045AFM85 uses electronically controlled HPCR injection.

Older 4045 variants can have different fuel systems.

So don't compare injectors only by:

Engine displacement

Physical appearance.

Use the complete engine model, serial number and injector reference.

Should a Replacement Injector Be Programmed or Calibrated?

For electronically controlled common-rail engines, injector replacement should follow the correct John Deere service procedure for the particular engine and ECU configuration.

Don't assume an electronically controlled injector can simply be installed and the job is finished.

If calibration or injector-specific data is required for your particular engine, that procedure should be completed using the appropriate diagnostic equipment.

This is another reason why the complete engine model and serial number matter.

What Should I Check Before Ordering a John Deere 4045 Fuel Injector?

Start with the engine plate.

Send us:

Engine model: 4045AFM85

Engine serial number: XXXXX

Existing injector number: XXXXX

Quantity: 1 or 4

Application: Propulsion / Auxiliary / Generator

Delivery: Country / Port

If the injector number is difficult to read, send photographs.

We'd rather identify it properly than send an injector based solely on:

“John Deere 4045 marine injector.”

John Deere 4045 Fuel Injector Part Numbers

Here are several useful references associated with the applicable 4045AFM85 fuel-injection system:

Part NumberDescription
SE501926	Reman high-pressure fuel injector — documented 4045AFM85 application
RE551317	High-pressure injector harness — documented 4045AFM85 application
R515044	Fuel injector inlet connector fitting — applicable 4045AFM85 / 4045SFM85 applications
R522417	Fuel injector clamp — applicable 4045AFM85 application

These references are provided for parts-identification guidance.

They should not be interpreted as saying that every John Deere 4045 uses these components.

Always check the complete engine model and serial number.

John Deere 4045 Fuel Injector FAQs

What is the fuel injector part number for a John Deere 4045AFM85?

SE501926 is a documented reman high-pressure fuel-injector reference for the John Deere 4045AFM85.

The engine serial number should still be checked before ordering.

How many injectors does a John Deere 4045AFM85 have?

The 4045 is an inline four-cylinder engine, so the 4045AFM85 uses four fuel injectors.

Is the John Deere 4045AFM85 common rail?

Yes. The 4045AFM85 uses a high-pressure common-rail (HPCR) fuel-injection system.

Can a bad injector cause black smoke on a John Deere 4045?

An injector problem can contribute to abnormal combustion and smoke, but black smoke doesn't automatically prove an injector has failed.

Air supply, turbocharging, engine load and other fuel-system problems can also be involved.

Diagnosis should come before replacement.

Can a bad injector cause hard starting?

Injector performance can affect starting, but there are several other possible causes of difficult starting.

Fuel supply, rail pressure, electrical faults, engine condition and other factors should also be considered.

Should I replace all four John Deere 4045 injectors?

Not automatically.

If testing confirms that only one injector has failed and the others remain within specification, replacing all four may not be necessary.

The decision should be based on the condition and test results of the fuel system.

Is SE501926 suitable for every John Deere 4045?

No.

SE501926 is documented for the 4045AFM85 application, but you should not assume it fits every 4045 engine.

Older and different 4045 configurations can use different injection systems.

Can I change the injector myself?

The 4045AFM85 uses a high-pressure common-rail system.

Injector replacement therefore requires appropriate knowledge, cleanliness, tools, safety procedures and, where applicable, diagnostic/calibration procedures.

If you're not experienced with HPCR systems, the work should be carried out by a qualified diesel technician.
