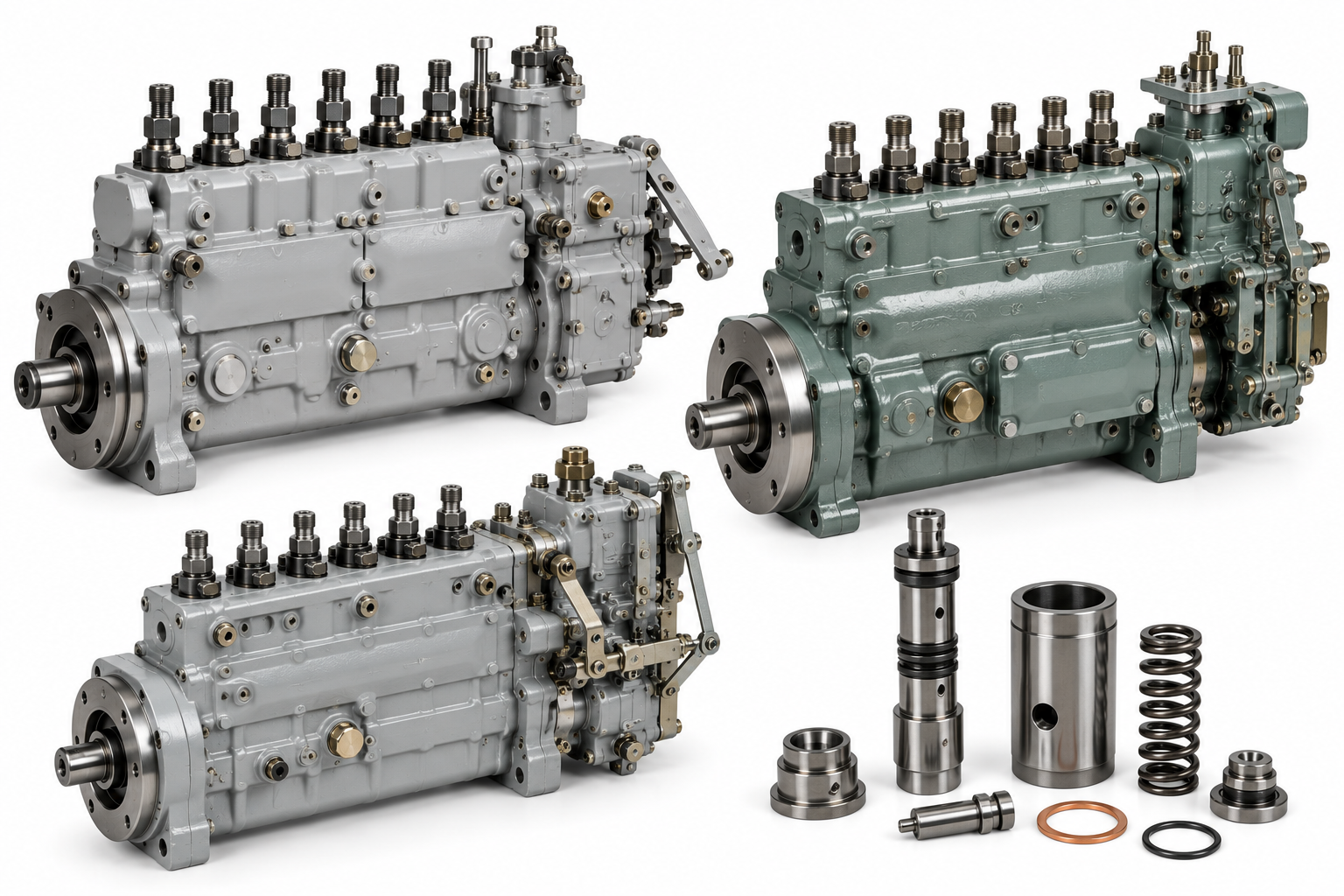

Genuine MaK Fuel Injection Pumps: What Engineers & Buyers Need to Know
The chief engineer sends a message:
“We need one genuine MaK fuel injection pump urgently.”
That sounds like a straightforward RFQ.
But then the purchasing department asks:
Which MaK engine?
Which cylinder?
Do we have the pump part number?
Is the requirement for a complete injection pump or only the pump element?
Those questions matter.
A MaK fuel injection pump is a precision component in the engine's high-pressure fuel system. Ordering a pump simply because it looks similar to the existing unit can result in the wrong configuration arriving onboard.
For vessels operating MaK medium-speed engines, correct identification should start with the complete engine model, engine number and existing pump or spare-parts reference.
Alfa Marine Spare Parts can assist with sourcing genuine MaK fuel injection pumps and related fuel-injection components, subject to engine configuration and availability.
For other engine requirements, browse our MaK Marine Engine Parts catalogue.
Need a pump now? Request a Quote or email request@alfamarinespareparts.com.
What Does a MaK Fuel Injection Pump Actually Do?
The fuel injection pump has a demanding job.
It must meter and deliver fuel at the correct point in the engine cycle so that the injector can deliver the required quantity into the cylinder.
On a medium-speed marine engine, small changes in fuel delivery can affect how an individual cylinder performs.
Problems associated with the fuel-injection system can show up as:
- Reduced cylinder output
- Uneven cylinder performance
- Difficult starting
- Abnormal exhaust temperatures
- Increased smoke
- Poor combustion
- Fuel leakage
- Irregular engine operation
But an important point needs to be made:
These symptoms do not automatically mean the complete injection pump is defective.
The injector, pressure valve, pump element, control mechanism, high-pressure pipe and other components may also need inspection.
Diagnosis should come before replacement.
Which MaK Engines Use Fuel Injection Pumps?
MaK has produced several medium-speed marine engine families.
Fuel-injection-pump requirements can arise on engines such as:
- MaK M20C
- MaK M25C
- MaK M32C
- MaK M43C
- Selected older MaK engine types
- Other applicable MaK configurations
However:
Do not assume the same injection pump fits all of these engines.
Even engines from the same family can have differences according to cylinder configuration, production revision, engine number and fuel-system arrangement.
The safest approach is always to identify the pump against the actual engine.
Genuine MaK M43C Fuel Injection Pump
The MaK M43C provides a useful example of why correct pump identification matters.
MaK documentation identifies a complete fuel injection pump assembly and separately identifies internal components including the:
- Pump element
- Tappet body
- Control sleeve
- Pump spring
- Control rod
- Stop piston
- Pressure-valve related components
- Seals and associated hardware
This means that when someone asks for:
“MaK M43C fuel pump”
we still need to know what they actually want.
They may need:
A complete injection pump assembly
or:
A pump element
or:
A pressure valve
or:
A repair-related component
Those are very different requirements.
Complete Injection Pump or Pump Element?
This is one of the most common points of confusion in fuel-system RFQs.
A complete fuel injection pump is not the same thing as the pump element inside it.
The pump element generally includes the precision plunger-and-barrel arrangement responsible for generating and controlling high-pressure fuel delivery.
So an RFQ that says:
“1 pc MaK injection pump”
should not automatically be quoted as a pump element.
Likewise, a request for:
“MaK plunger and barrel”
does not necessarily mean the customer needs the complete injection pump.
Clarifying this before ordering can save considerable time and cost.
Why Does Genuine Matter With a MaK Injection Pump?
There are marine components where dimensional similarity may be enough to begin identification.
A fuel injection pump is not one of them.
The internal components operate with very small tolerances.
The MaK M43C service documentation specifically notes that injection-pump components are manufactured to high tolerances and that individual components need to remain associated with the proper pump housing during overhaul.
Why?
Because changing or exchanging precision components can affect the fuel delivery quantity.
And once fuel delivery changes, pump calibration may also need attention.
That is one of the strongest reasons a vessel may specify a genuine MaK fuel injection pump rather than choosing a replacement based purely on appearance or price.
Real Situation: “The Replacement Pump Looks Exactly the Same”
This happens regularly in marine purchasing.
A supplier sends a photograph.
The chief engineer compares it with the existing pump and says:
“It looks identical.”
That's useful.
But it isn't enough.
Two pumps can have a very similar external appearance while differing internally.
Before accepting a replacement, verify:
- Engine type
- Engine number
- Existing pump part number
- Pump configuration
- Spare-parts sheet/reference where available
- Manufacturer identification
- Any superseded or replacement number
A photograph should support identification.
It should not replace part-number and engine-number verification.
Why Is the Engine Number Important?
MaK's own M43C spare-parts documentation makes this particularly clear.
Its ordering information calls for details including the:
Engine number
Spare-parts sheet number
Part number
That tells us something important about buying MaK parts:
“MaK M43C” alone may not be enough information.
The engine number helps identify the exact configuration and applicable component.
This becomes particularly important on engines that have been operating for many years and may have undergone previous repairs, updates or component replacements.
Real Situation: The Old Pump Part Number Cannot Be Read
Imagine the vessel has been operating for years.
The injection pump is removed, but the identification marking is:
- Dirty
- Corroded
- Painted over
- Partially unreadable
The purchasing department still needs a replacement.
What should you send?
Start with:
1. Complete engine designation
For example: MaK M43C.
2. Engine number
Photograph the engine nameplate clearly.
3. Existing pump photographs
Take photographs from several sides.
4. All visible numbers
Even an incomplete number can help.
5. Spare-parts catalogue reference
If available onboard.
6. Quantity
Specify whether you need one pump or a complete engine set.
That gives the parts supplier much more to work with than:
“Need MaK fuel pump urgently.”
One Cylinder Has Low Output — Is the Injection Pump Bad?
Possibly.
But don't condemn the complete pump immediately.
MaK M43C maintenance information specifically addresses injection-pump and pressure-valve inspection when cylinder output declines significantly.
The fuel system should be investigated systematically.
Depending on the symptoms, engineers may need to consider:
- Injection pump
- Pump element
- Pressure valve
- Fuel injector
- High-pressure fuel pipe
- Fuel supply
- Pump control mechanism
- Fuel quality
- Injection timing
- Cylinder condition
Replacing the most expensive component first isn't always the best troubleshooting strategy.
High Exhaust Temperature on One Cylinder
Another common situation:
The engine is operating normally, but one cylinder starts showing a noticeably different exhaust-gas temperature.
Should you order an injection pump?
Not immediately.
A cylinder-specific temperature problem can have several causes.
Fuel injection is certainly one area to investigate, but engineers may also need to check:
- Fuel injector condition
- Injection quantity
- Injection timing
- Pump condition
- Exhaust valve condition
- Compression
- Air supply
- Cylinder condition
The injection pump is part of the diagnosis, not automatically the conclusion.
Can You Overhaul a MaK Fuel Injection Pump?
Depending on the pump condition and available service capability, injection pumps can be inspected and overhauled.
But this isn't the same as dismantling an ordinary mechanical pump and replacing whichever parts look worn.
The MaK M43C documentation warns that the individual injection-pump components are manufactured to close tolerances.
It also indicates that mixing certain components between pump housings can affect fuel flow and may require the pump to be recalibrated on a test bench.
That's a critical detail.
If a pump has been dismantled for overhaul, component control matters.
Can the Pump Element Be Replaced Separately?
For applicable MaK injection pumps, the pump element can be a separately identified service component.
But the complete service procedure matters.
MaK documentation for the M43C indicates that pump elements and pressure valves should be replaced as complete sets where specified.
That means you should not casually mix individual precision parts from different assemblies.
If your requirement is a:
Pump element
Plunger and barrel
Pressure valve
or:
Complete injection pump
state that clearly on the RFQ.
What Happens If Injection Pump Components Get Mixed During Overhaul?
This is exactly the kind of small workshop mistake that can create a much larger problem.
Several pumps are removed from the engine.
They're dismantled at the same time.
Parts are placed together on the same bench.
During reassembly, a control component from pump A ends up in pump B.
Externally, everything may still fit.
But the MaK service documentation warns that exchanging individual pump components can have a significant effect on fuel flow.
The result may be a pump that requires recalibration.
When multiple pumps are being serviced, keep the relevant components associated with their original pump assemblies unless the service procedure specifies replacement.
Why Is Test-Bench Calibration Important?
A fuel injection pump isn't judged only by whether fuel comes out.
The amount of fuel delivered matters.
If an overhauled pump delivers differently from the intended specification, cylinder performance can change.
A proper pump test can help evaluate factors such as:
- Fuel delivery
- Pressure-valve performance
- Leakage
- Pump operation
- Calibration
This is especially important after precision internal components have been changed.
What About the Pressure Valve?
The pressure valve is another important part of the injection-pump system.
For the M43C, MaK maintenance information provides a defined pressure-valve inspection procedure.
If there is a significant decline in cylinder output, the pressure valve is specifically one of the components that should be checked.
That is useful troubleshooting information because it shows why:
Low cylinder output ≠ automatically replace complete injection pump.
Sometimes the problem may be within a serviceable part of the pump assembly.
New Genuine Pump or Overhaul the Existing Pump?
There isn't one answer for every vessel.
A new genuine pump may make sense when:
- The existing pump is severely damaged
- The housing or critical components are unusable
- Vessel downtime is critical
- A genuine replacement is available
- The owner requires genuine components
Overhaul may make sense when:
- The pump body is serviceable
- Proper specialist overhaul capability is available
- Genuine service components are available
- The pump can be correctly tested and calibrated afterward
The decision should consider condition, availability, downtime and total repair cost, not purchase price alone.
“We Need the Cheapest Pump Available”
For a non-critical accessory, lowest initial price may sometimes be the main purchasing criterion.
For a main-engine fuel injection pump, it deserves more thought.
Ask:
Is the pump correctly identified?
Is it new, genuine, OEM, replacement or reconditioned?
Has an overhauled pump been properly tested?
Are the calibration and fuel-delivery characteristics correct?
Can its origin and condition be documented?
A cheaper pump that causes another shutdown can become considerably more expensive than the original saving.
How Do You Identify a Genuine MaK Fuel Injection Pump?
Start with the paperwork and identification, not just paint colour or external appearance.
Check available:
- Manufacturer identification
- MaK part number
- Pump manufacturer number where applicable
- Engine number
- Spare-parts reference
- Packaging and documentation
- Supplier traceability
Older pumps can also carry numbers from the original fuel-equipment manufacturer.
Do not remove or ignore those references.
They can be extremely useful during identification.
Are All MaK Fuel Injection Pumps Made by MaK?
Not necessarily.
Marine engine manufacturers can use specialist fuel-injection equipment produced by established fuel-system manufacturers.
Depending on the MaK engine type and generation, the fuel equipment can therefore carry manufacturer-specific identification in addition to MaK references.
This is another reason to send every visible number from the existing pump when requesting a replacement.
Do not assume an unfamiliar manufacturer marking means the pump is not original to the engine configuration.
What Should Be Replaced When Installing a New Pump?
Follow the applicable MaK service procedure.
For the documented M43C pump installation, the maintenance information calls for renewal of applicable sealing components such as O-rings during assembly.
This is good practice to remember when purchasing the pump.
The job may require more than the pump itself.
Depending on the exact engine and work scope, consider whether you also require:
- O-rings
- Sealing components
- High-pressure pipe seals/components
- Fuel-line seals
- Associated gaskets
- Other specified installation parts
Ordering these together can prevent an avoidable delay onboard.
What Happens After Installing a New MaK M43C Injection Pump?
Installation is not simply:
Fit pump → start engine → full load.
The M43C service documentation provides specific commissioning instructions for a new injection pump.
For applicable heavy-fuel operation, the pump must be properly preheated through fuel circulation before starting.
The documentation also specifies initial operation at no load after startup.
This is exactly why replacement work should follow the applicable MaK maintenance instructions rather than relying only on general diesel-engine experience.
MaK Fuel Injection Pump Maintenance
Fuel injection pumps operate under demanding conditions.
Long-term reliability depends on more than the pump itself.
Important factors include:
- Correct fuel treatment
- Fuel cleanliness
- Proper filtration
- Correct operating viscosity
- Correct fuel temperature
- Water contamination control
- Correct engine maintenance
- Injector condition
- High-pressure pipe condition
- Proper pump adjustment
Poor fuel-system conditions can damage even a high-quality replacement pump.
Should You Replace One Pump or the Complete Set?
It depends on why the pump is being replaced.
If one pump has suffered isolated damage, replacing a single unit may be appropriate.
But if several pumps have accumulated similar operating hours and one has reached a wear limit, the condition of the remaining pumps may deserve attention.
During major overhaul, owners may choose to:
- Inspect all pumps
- Test all pumps
- Overhaul all pumps
- Replace selected pumps
- Keep tested spare pumps onboard
The best strategy depends on engine condition, operating hours, vessel schedule and maintenance planning.
Spare Injection Pump Onboard: Is It Worth Having?
For vessels operating internationally, a critical spare fuel injection pump can reduce exposure to extended downtime.
Imagine a vessel arriving in port with one failed pump and a sailing schedule measured in hours rather than days.
Even if a replacement can be sourced quickly, customs, airfreight and port delivery can become the limiting factors.
For vessels with critical MaK propulsion or generator engines, the onboard spare-parts strategy should therefore consider fuel-injection equipment.
Genuine MaK Fuel Injection Pump FAQs
What information do I need to order a MaK fuel injection pump?
Ideally provide:
Complete engine model
Engine number
Existing pump part number
Fuel-equipment manufacturer number, if visible
Spare-parts sheet/reference
Quantity
Photographs are also useful.
Is a MaK pump element the same as the complete injection pump?
No.
The pump element is a precision internal component of the fuel injection pump.
If you need a complete pump, state complete fuel injection pump assembly on your inquiry.
Can MaK injection pumps be overhauled?
Depending on condition and pump type, yes.
However, precision components must be handled correctly, and certain repairs can require test-bench checking or recalibration.
Can I mix internal parts between MaK M43C pumps?
You should not casually interchange precision components between pump assemblies.
MaK service information warns that exchanging individual components can affect fuel flow and can result in the need for recalibration.
Does low cylinder power always mean a bad fuel injection pump?
No.
The pump is one possible cause, but the pressure valve, injector, injection timing, compression, exhaust valve and other engine conditions may also need investigation.
Should I buy genuine or reconditioned?
That depends on vessel requirements, availability, budget and the condition/documentation of the reconditioned unit.
If the requirement specifically states genuine MaK, quote and supply against that requirement rather than silently substituting another condition.
Does an M32C injection pump fit an M43C?
Do not assume so.
MaK engine families have different fuel-system configurations and component requirements.
Identify the pump using the complete engine and part information.
Can you identify a MaK pump from a photograph?
A photograph can help, but it should ideally be accompanied by the engine number and all visible pump numbers.
Photographic similarity alone is not enough for reliable parts selection.
What if the original MaK part number has been superseded?
Send the old number anyway.
An old or superseded reference can be extremely useful when tracing the applicable current replacement.
Do not discard an old number simply because it no longer appears in a current catalogue.
Need a Genuine MaK Fuel Injection Pump?
If your vessel requires a genuine MaK fuel injection pump, pump element, pressure valve or related fuel-injection component, Alfa Marine Spare Parts can assist with identification and sourcing subject to the exact engine configuration and availability.
We can assist with requirements for applicable MaK engines including:
- MaK M20C
- MaK M25C
- MaK M32C
- MaK M43C
- Other applicable MaK engine configurations
For the fastest identification, send:
Engine model:
Engine number:
Part number:
Pump manufacturer/reference number:
Part description:
Quantity:
Delivery destination:
If the part number is unclear, include photographs of the engine nameplate and existing injection pump.
Browse our MaK Marine Engine Parts catalogue.
Email: request@alfamarinespareparts.com
