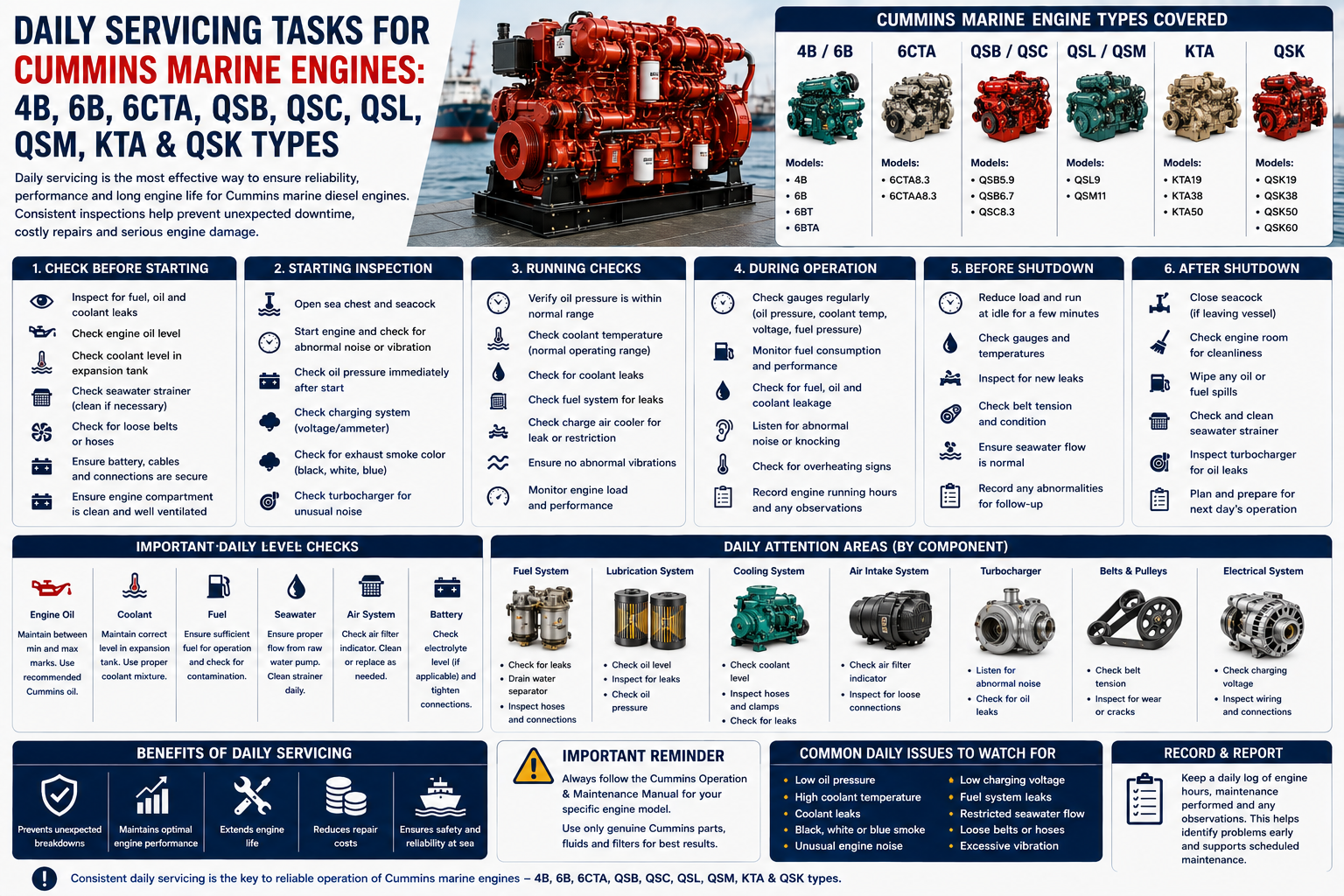

Daily Maintenance for Cummins Marine Engines: What Engineers Should Check
Daily maintenance on a Cummins marine engine is not about performing a major service every time the vessel leaves port. The real purpose is to notice small changes while they are still easy to investigate.
An engine that normally holds stable oil pressure but suddenly reads lower, a QSM11 that begins running slightly hotter at the same load, or a 6BTA that develops more black smoke during acceleration is giving the crew useful information. None of these symptoms identifies a failed component by itself, but a change from the engine's normal operating pattern deserves attention.
That principle applies across many Cummins marine families, from mechanically controlled engines such as the 6BT, 6BTA, 6CTA8.3, NT855, NTA855, KTA19, KTA38 and KTA50 to electronically controlled engines including the QSB6.7, QSC8.3, QSL9, QSM11 and QSK series.
A useful daily routine is therefore not simply to check whether everything is still within an alarm limit. It is to inspect, compare, record and investigate what has changed.
1. Start With Lubrication: Oil Level, Condition and Pressure
Engine oil is one of the best places to begin because changes in the lubrication system can reveal both external and internal problems.
Check the oil level using the correct procedure for the particular engine and installation, but don't stop at confirming that there is enough oil. Compare the level with previous checks.
A gradually falling oil level may point toward an external leak, turbocharger oil loss, increased oil consumption, cylinder or piston-ring wear, or another condition that needs investigation. What matters most is the trend. Adding half a litre occasionally is different from an engine that suddenly begins requiring several litres over the same operating period.
A rising oil level can be even more significant. If nobody has added lubricant, another fluid may be entering the sump. Depending on the engine and fault, possibilities can include fuel dilution or coolant contamination.
Oil condition also deserves attention. Diesel-engine oil will normally darken in service, but a diesel smell, milky appearance, unusual thinning, foaming, sludge or metallic material should not simply be accepted as normal ageing.
Oil pressure should then be considered together with engine temperature, RPM and load. A lower reading does not automatically mean the oil pump has failed. Low oil level, excessive oil temperature, incorrect viscosity, internal leakage, bearing wear or a faulty pressure signal can create similar symptoms.
For engineers, the useful question is not:
“Is the oil pressure still above the alarm point?”
It is:
“Is the pressure different from what this engine normally shows under comparable operating conditions?”
That comparison can reveal a developing lubrication problem before an alarm is generated.
2. Treat the Cooling System as One Complete Circuit
Cooling problems are often diagnosed too narrowly. If a Cummins marine engine starts running hotter, the freshwater pump is only one possible cause.
The entire cooling path has to work correctly: coolant level, freshwater circulation, seawater supply, strainers, hoses, heat exchangers, aftercoolers and thermostatic control all influence operating temperature.
Daily inspection should therefore begin by looking for coolant loss, staining, corrosion and evidence of leakage around pumps, hoses, clamps and cooler connections. Repeatedly topping up coolant is not normal maintenance. If the level continues falling, the fluid is going somewhere.
The seawater side deserves particular attention on marine engines such as the 6BTA, 6CTA8.3, QSB, QSC, QSL, QSM11, KTA19 and larger QSK installations, depending on their cooling configuration.
A partially restricted sea strainer is a good example of why operating conditions matter. It may still pass enough water at idle while the vessel is alongside. Under load, however, the cooling demand increases and the same restriction may no longer provide adequate flow.
That creates a familiar marine-engine complaint:
normal temperature at the dock, rising temperature underway.
Before replacing a pump or thermostat, inspect the seawater inlet, strainer, suction hoses and heat exchanger condition. A suction hose can even collapse internally under high pump demand while appearing perfectly normal when the engine is stopped.
Where flexible impellers are used, missing vanes should also be taken seriously. Installing a new impeller is only half the job if fragments from the old one are still trapped inside a heat exchanger, oil cooler, aftercooler or hose connection.
Temperature trends are particularly useful. A QSM11 or KTA19 that has historically run at a stable temperature but begins operating a few degrees hotter under the same load may be showing the first signs of reduced seawater flow, cooler fouling, pump deterioration or another developing cooling restriction.
3. Fuel Quality and Filtration Matter Before the Injector
Many marine diesel problems that eventually become expensive begin much earlier in the fuel system.
The daily inspection should include the fuel supply, water separator, filter housings, fuel lines and visible injection-system connections. Look for water, sediment, sludge, rust and leakage rather than waiting for poor engine performance.
This matters on older mechanical Cummins engines such as the NT855, NTA855, 6CTA, KTA19, KTA38 and KTA50, but fuel cleanliness becomes even more important on newer electronically controlled engines with more sophisticated injection systems.
A blocked filter can also produce misleading symptoms. At idle, enough fuel may still pass through the restriction for the engine to sound perfectly healthy. Once the engine is placed under load and fuel demand increases, it may lose power, become unstable or fail to reach expected RPM.
That is why repeated filter blockage should trigger an investigation of the fuel tanks and upstream supply instead of an endless cycle of replacing filters.
Water in the fuel-water separator deserves the same approach. Draining it solves the immediate condition, but if significant water continues to return, the tank and fuel supply need attention.
Fuel leakage is not only a reliability issue. Diesel accumulating around hot engine and exhaust components creates a fire risk, making fuel-system inspection an important part of every engine-room walk-through.
4. Read the Air, Turbocharger and Exhaust Systems Together
When a turbocharged Cummins engine develops smoke or loses performance, replacing injectors or a turbocharger immediately can lead to an expensive misdiagnosis.
The intake, turbocharger, charge-air system and exhaust should be treated as one connected system.
Inspect air filters and intake connections for restriction, and look at the charge-air hoses, clamps, piping and aftercooler connections for evidence of leakage. Compressed air escaping after the turbocharger can reduce boost, increase exhaust temperature and cause black smoke even when the turbocharger itself is functioning correctly.
The turbocharger can also reveal problems through changes in sound and appearance. Oil leakage, exhaust soot around joints, loose connections or a new whistle, rubbing noise, scraping or grinding sound deserves investigation.
Exhaust smoke adds another layer of information.
Black smoke can be associated with restricted airflow, a charge-air leak, turbocharger problems, fuel-system faults or excessive engine load.
Blue smoke can indicate oil entering the combustion process through areas such as the cylinders, piston rings, turbocharger or valve-related components.
White smoke can be associated with incomplete combustion under certain operating conditions.
The important point is that smoke is a clue, not a final diagnosis.
For example, a QSM11 producing black smoke and struggling to accelerate should not automatically receive a new set of injectors. The air intake, turbocharger, aftercooler, charge-air connections and vessel loading should also be checked.
Likewise, on larger engines such as the KTA38, KTA50, QSK19, QSK38, QSK50 and QSK60, exhaust-temperature information can help identify a cylinder or bank that is beginning to behave differently from the others.
5. Listen, Compare and Record What the Engine Is Telling You
A good engineer does not rely only on fluid levels and gauges.
Noise, vibration, smell and appearance all form part of the daily inspection.
A new knock, tapping sound, turbocharger whistle, bearing noise or exhaust leak should be recorded rather than dismissed because the engine is still running. The same applies to increasing vibration. Possible causes can range from engine-related combustion problems to mounts, couplings, bearings, shafts or propeller condition.
Belts, hoses, clamps and electrical connections should also receive a quick visual inspection. Marine vibration, heat, moisture and salt can slowly damage components long before complete failure occurs.
On electronically controlled Cummins engines, alarms should be treated as operating data rather than messages to acknowledge and forget. When an alarm appears, record the engine RPM, load, temperature, pressure and circumstances surrounding the event.
If the system reports high coolant temperature, verify the physical temperature and cooling condition. If it reports low oil pressure, verify lubrication pressure before deciding that the sensor is faulty.
Twin-engine vessels offer an additional diagnostic advantage. If two similar QSM11 engines are operating at approximately the same speed and load but the starboard engine consistently runs hotter, the port engine effectively becomes a reference point. Comparing seawater flow, cooler condition, thermostats, pumps and load between the two installations can narrow the investigation considerably.
This is where an engine-room log becomes valuable. Record information such as:
| Daily ParameterPort EngineStarboard EngineNotes | |||
| Engine hours | ___ | ___ | |
| Oil level | ___ | ___ | |
| Oil pressure | ___ | ___ | |
| Coolant temperature | ___ | ___ | |
| Fuel separator condition | ___ | ___ | |
| Seawater flow | ___ | ___ | |
| Exhaust smoke | ___ | ___ | |
| Turbocharger sound | ___ | ___ | |
| Vibration | ___ | ___ | |
| Alarms | ___ | ___ |
One isolated reading may not tell you very much. Months of comparable readings can tell you when an engine's behavior has begun to change.
Daily Checks Are Not the Same as Scheduled Maintenance
A daily inspection helps detect changes. It does not replace the manufacturer's scheduled maintenance requirements for the exact engine model and application.
Oil and filter changes, valve adjustments, cooler cleaning, injector servicing, coolant maintenance, turbocharger inspections and major overhaul work must still be carried out according to the appropriate schedule.
A Cummins 4B and a QSK95 are very different engines, so one generic maintenance interval should never be applied to the complete Cummins marine range.
Engine rating, application, duty cycle, operating environment and exact configuration all influence the correct maintenance requirements.
When Ordering Cummins Marine Parts
When inspection identifies a component that needs replacement, accurate engine information reduces the chance of ordering the wrong part.
Instead of requesting only a “Cummins seawater pump” or “Cummins injector,” provide the complete engine model, engine serial number, CPL where available, existing part number, quantity and application.
Photographs can also be useful, particularly on older mechanical engines or installations that may have been modified during their service life.
Alfa Marine Spare Parts can assist with Cummins marine requirements including filters, seawater pumps, freshwater pumps, injectors, turbochargers, aftercoolers, heat exchangers, oil coolers, sensors, gaskets and engine overhaul components.
Browse our marine engine brands or search the marine spare parts catalogue.
Frequently Asked Questions
What should be checked daily on a Cummins marine engine?
A useful daily inspection covers lubrication, cooling, fuel supply, air intake, turbocharger condition, seawater flow, leaks, hoses, belts, vibration, smoke, operating temperatures, pressures and active alarms.
Why does a Cummins marine engine run hot only under load?
Possible causes include restricted seawater flow, a partially blocked sea strainer, heat-exchanger fouling, pump deterioration, hose restriction, aftercooler problems, thermostat issues or excessive engine loading.
Does black smoke mean the injectors are bad?
Not necessarily. Restricted airflow, a charge-air leak, turbocharger problems or excessive engine load can produce similar symptoms. The air and fuel systems should be considered together.
Why does the fuel filter keep blocking?
Repeated blockage can indicate contamination in the fuel tank or upstream fuel supply. Replacing the filter repeatedly without investigating the source does not correct the underlying problem.
What does a rising engine-oil level mean?
If oil has not been added, another fluid may be entering the sump. Depending on the particular engine and fault, fuel dilution or coolant contamination may need to be investigated.
Which Cummins marine engines does this guidance apply to?
The principles are relevant to many Cummins marine families, including 4B/6B, 6CTA8.3, NT855/NTA855, KTA19/KTA38/KTA50, QSB, QSC, QSL, QSM and QSK engines, but maintenance requirements must always be confirmed for the exact engine and serial number.
Contact Alfa Marine Spare Parts
For Cummins marine engine filters, pumps, injectors, turbochargers, cooling-system components and overhaul parts, send:
Engine model + serial number + CPL where available + current part number + quantity + photographs + delivery location
Email: request@alfamarinespareparts.com
Website: www.alfamarinespareparts.com
Daily maintenance works best when it becomes more than a checklist. The engineer who knows what an engine normally sounds like, how much oil it normally uses and what temperatures it normally holds has a baseline against which every future change can be judged.
