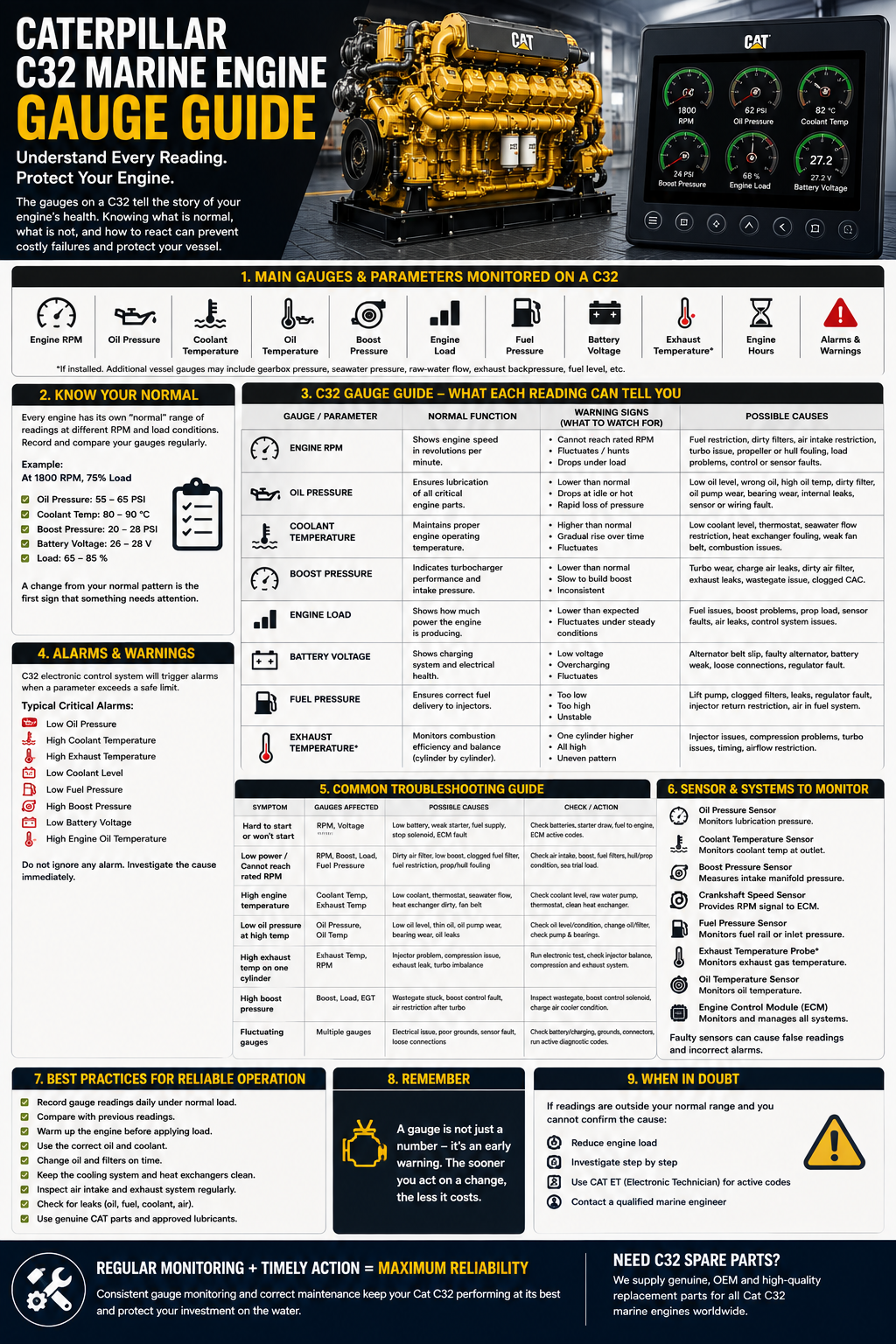

Reading Between the Lines: What Your Caterpillar C32 Marine Engine Gauges Are Telling You
A Caterpillar C32 marine engine is a masterclass in heavy-duty engineering. Whether it is powering a luxury sportfish yacht, a commercial tug, or a high-speed ferry, this twin-turbocharged V12 is built to endure immense stress. However, even the most robust marine diesel engines don't fail without warning. Long before a critical red alarm flashes on your helm display, your engine is actively trying to tell you that something is wrong.
You just have to know how to read the gauges.
For yacht captains, chief engineers, and fleet operators, monitoring instrumentation isn’t just about making sure numbers stay out of the "red zone." True preventive maintenance is about detecting subtle trend deviations. If you can answer the question, “Is this engine behaving differently than it did last month under the exact same load?”, you can catch a minor seal or filter issue before it mutters into a catastrophic catastrophic engine failure at sea.
Here is a practical, engineering-focused breakdown of what your CAT C32 parameters are actually telling you.
1. Engine RPM and the Tale of the Missing Top-End
The tachometer seems straightforward, but unstable RPM or a sudden inability to hit Wide Open Throttle (WOT) rated speed is your first indicator of systemic trouble.
Why Your C32 Cannot Reach Rated RPM CAT C32 Marine Engine Spare Parts | Caterpillar C32 Parts | Alfa Marine Spare Parts
If your Caterpillar C32 historically topped out at its rated RPM under full load but is now falling short by 100–200 RPM, do not immediately panic about lost engine compression. In the maritime environment, the problem is often external to the cylinder block.
- Fuel and Air Starvation: Check for dirty primary fuel filters or a minor restriction in the air intake.
- Running Gear Fouling: Marine growth on the hull, fouled propellers, or an incorrect propeller pitch can introduce excessive hydrodynamic load, effectively holding the engine back.
Sudden RPM Fluctuation (Hunting)
If your RPM is fluctuating or "hunting" at idle or during mid-range cruise, look closely at your fuel supply lines. This symptom usually points to air entering the fuel system, fuel contamination (water/microbes), or a failing electronic sensor/wiring harness feeding the ECM.
2. Interpreting Oil Pressure vs. Oil Temperature
Engine oil pressure is arguably the most critical life-sign of your CAT C32. It provides the hydro-dynamic film required to protect crankshaft bearings, camshaft components, and your high-rpm turbocharger bearings.
The Direct Relationship with Temperature
Cold oil is highly viscous (thick), resulting in higher pressure readings upon startup. As the engine warms to operating temperature, the oil thins, causing pressure to naturally drop at idle. Therefore, isolated oil pressure numbers mean very little without context. You must interpret oil pressure dynamically alongside Engine RPM, Oil Temperature, and Load.
Troubleshooting Low C32 Oil Pressure
If you notice a gradual downward trend in oil pressure over several weeks while operating under identical cruising conditions, you need to investigate:
- Excessive oil temperature (thinning the oil beyond spec)
- Internal oil pump wear or pressure relief valve fatigue
- Increased bearing clearances (high-hour engine symptom)
- Incorrect lubricant viscosity during the last oil change
Tip from the workshop: A sudden, violent drop in oil pressure requires immediate engine shutdown. Check the oil level, inspect the remote filter lines for catastrophic leaks, and verify that the sensor itself hasn't failed.
3. Coolant Temperature: Spotting Thermal Overload
The cooling system of a high-output V12 marine engine has to reject an astronomical amount of heat. On a C32, this involves a complex balance between the internal freshwater jacket loop and the external raw-water (seawater) circuit.
Running Hot Only at High RPM
This is one of the most common troubleshooting complaints among marine engineers. If your CAT C32 maintains a perfect 82°C (180°F) at idle and low speeds, but the needle begins to creep upward past 90°C as you push up the throttles, your cooling system has a capacity limitation under load.
- The Raw-Water Checklist: Inspect your sea strainers for debris, check the seawater pump impeller for missing blades, and look for progressive marine growth inside the plate heat exchanger or aftercooler.
The Twin-Engine Diagnostic Advantage
If you are operating a twin-screw yacht, troubleshooting becomes much simpler. If your port engine runs consistently hotter than the starboard engine under identical load, you have an immediate baseline. Swap sensors between the engines first to rule out an instrumentation error before you begin tearing down heat exchangers.
4. Boost Pressure and Intake-Air Anomalies
The turbocharger boost gauge measures the positive pressure inside the intake manifold. It provides a direct look into the breathing efficiency of your V12.
Low Boost Paired with Black Smoke
If your C32 is underperforming, showing lower-than-normal boost pressure, and blowing black smoke out of the exhaust bypass, the engine is experiencing an incorrect air-to-fuel ratio. The ECM is injecting fuel based on throttle position, but the cylinders aren't getting enough oxygen to burn it cleanly.
- Where to look: Inspect the charge-air piping for split silicone hoses or loose clamps (a boost leak). If the plumbing is tight, inspect the air filters for restrictions or check the turbocharger compressor wheels for exhaust-side fouling or binding bearings.
High Intake-Air Temperature
Where monitored, high charge-air or intake manifold temperatures indicate that your seawater-cooled aftercooler is failing to do its job. Hot intake air reduces air density, dropping your boost efficiency, increasing your exhaust gas temperatures (EGTs), and forcing the engine to work much harder to achieve the same speed.
